TEIN STREET BASIS Z Coilovers 1998-2002 HONDA ACCORD CG6 2300 FF

Basic Models for Street Use. Superior Quality Made Affordable!

Thread-Type Adjustable
Twin-Tube
Uses OE Mounts
Durable & Reliable

ADDITIONAL INFORMATION

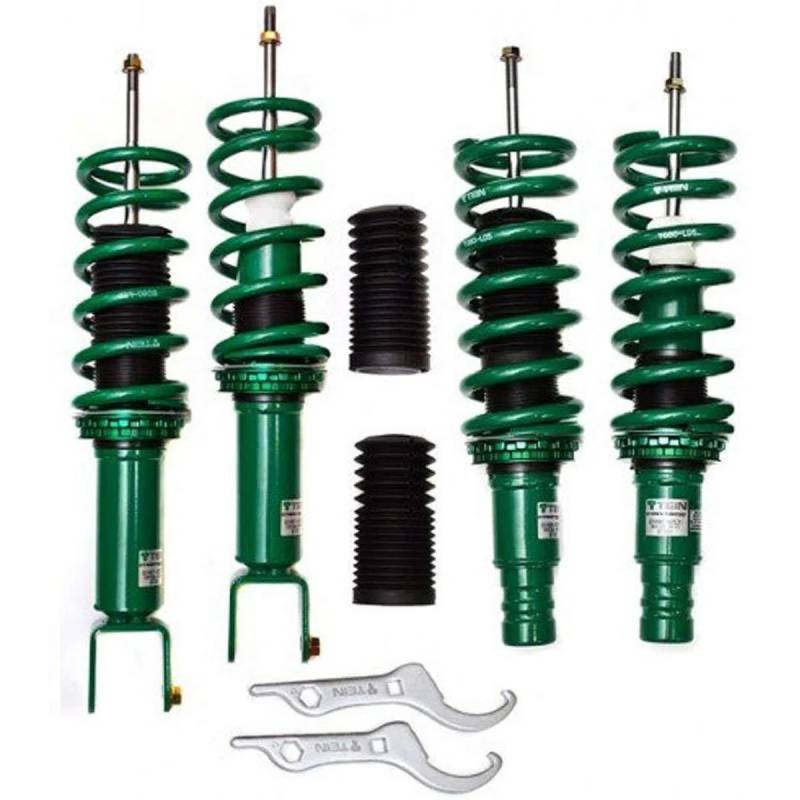

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: STREET BASIS Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: N
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
FRONT UPPER MOUNT: OEM
FRONT RECOMMENDED RIDE HEIGHT (mm): -55
FRONT RECOMMENDED RIDE HEIGHT (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -108
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -4.3
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -15
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -65
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -45
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.8
FRONT SPRING RATE (kgf/mm): 12
FRONT SPRING RATE (lbs/in): 672
FRONT SPRING SP PART#: S8H94-13120
FRONT SPRING FREE LENGTH (mm): 215
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT: N
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
REAR UPPER MOUNT: OEM
REAR RECOMMENDED RIDE HEIGHT (mm): -55
REAR RECOMMENDED RIDE HEIGHT (inch): -2.2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -94
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -29
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -1.1
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -65
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -45
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.8
REAR SPRING RATE (kgf/mm): 4
REAR SPRING RATE (lbs/in): 224
REAR SPRING SP PART#: SG040-13250
REAR SPRING FREE LENGTH (mm): 250
REAR SPRING I.D. (mm): ID70 - ID90
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE:

FITMENT NOTES

MAKE: HONDA
MODEL: ACCORD
YEAR: 1998-2002
CHASSIS: CG6
TRIM:
MOTOR SIZE: 2300
DRIVETRAIN: FF
