TEIN STREET ADVANCE Z Coilovers 2004-2009 MAZDA MAZDA3 BK3P 5DR 2300 FF

Basic Models for Street Use. Superior Quality Made Affordable!

Thread-Type Adjustable
Twin-Tube
Uses OE Mounts
Durable & Reliable
Damping Force Adjustable
EDFC Compatible

ADDITIONAL INFORMATION

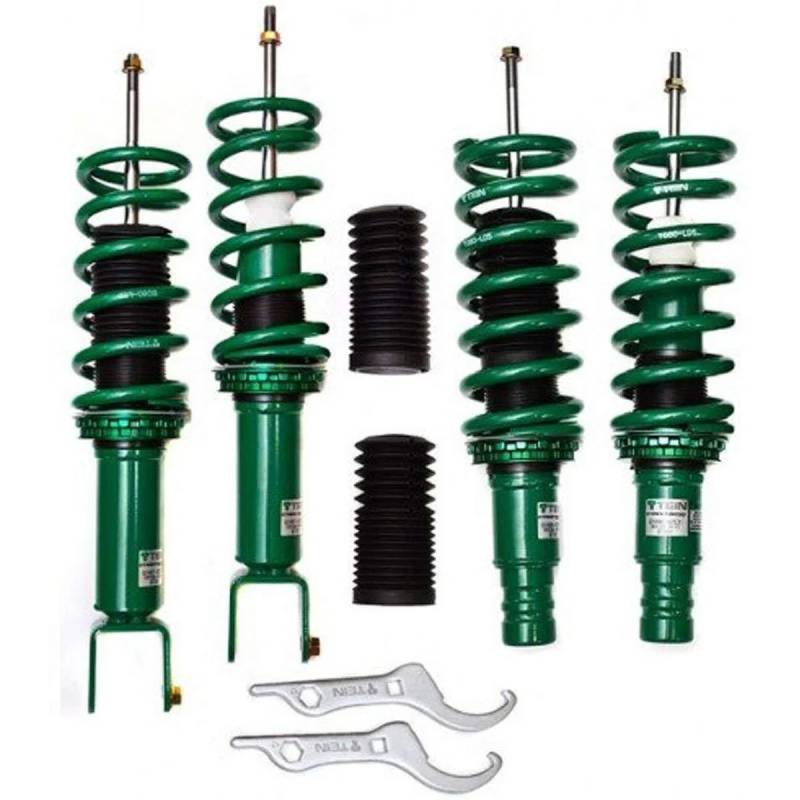

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: STREET ADVANCE Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
FRONT UPPER MOUNT: OEM
FRONT RECOMMENDED RIDE HEIGHT (mm): -45
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -71
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -31
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -1.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -55
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -35
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.4
FRONT SPRING RATE (kgf/mm): 5
FRONT SPRING RATE (lbs/in): 280
FRONT SPRING SP PART#: JD050-1D215-3
FRONT SPRING FREE LENGTH (mm): 215
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -30
REAR RECOMMENDED RIDE HEIGHT (inch): -1.2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -54
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -12
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.5
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -40
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -20
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.8
REAR SPRING RATE (kgf/mm): 4
REAR SPRING RATE (lbs/in): 224
REAR SPRING SP PART#: S6M25-13040
REAR SPRING FREE LENGTH (mm): 198
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL: FT: GROUND WIRE ABOVE LEFT SIDE UPPER MOUNT NEEDS TO BE DISPLACED TO AVOID INTERFERENCE. RR: MOTOR NEEDS TO BE INSTALLED ONTO SHOCK ABSORBER AND CHECKED FOR PROPER OPERATION, BEFORE INSTALLING TO THE VEHICLE. MOTOR, CABLE AND JOINT PARTS NEED TO BE WATERPROOFED WITH SILICON SEALANT. MOTOR NEEDS TO BE INSTALLED FACING BACKWARD.
EDFC MOTOR KIT 1: EDK05-12120
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: WHEEL SPACERS MAY BE REQUIRED FOR THE FRONT TO AVOID INTERFERENCE WITH OEM SIZED WHEELS AND TIRES (MINIMUM SPACER SIZE: +5MM)

FITMENT NOTES

MAKE: MAZDA
MODEL: MAZDA3
YEAR: 2004-2009
CHASSIS: BK3P
TRIM: 5DR
MOTOR SIZE: 2300
DRIVETRAIN: FF
