TEIN RX1 Coilovers 2015-2021 SUBARU WRX VAG 2000 4WD

Full-Scale Ride Height Adjustable Shock Absorber to Enable Camber Angle Adjustment on Minivans

ADDITIONAL INFORMATION

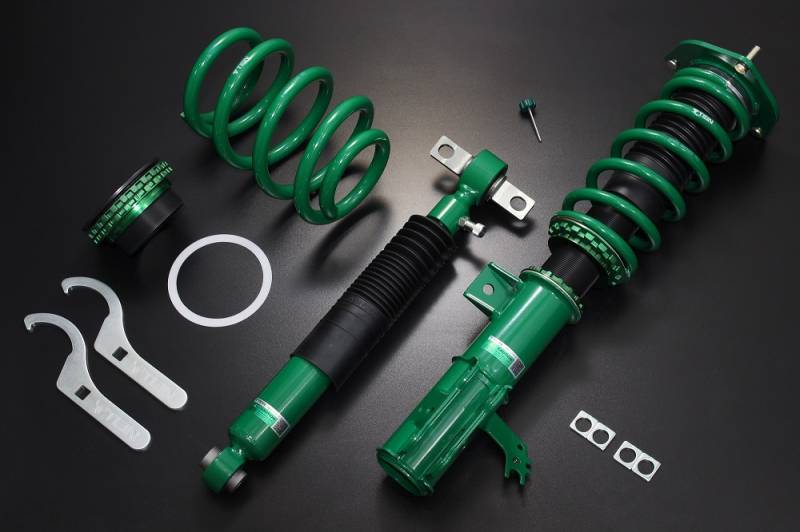

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: RX1
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: CAMBER ADJ
FRONT RECOMMENDED RIDE HEIGHT (mm): -30
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -88
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.5
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 1
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -40
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -20
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.8
FRONT SPRING RATE (kgf/mm): 8
FRONT SPRING RATE (lbs/in): 448
FRONT SPRING SP PART#: SQ080-01175S
FRONT SPRING FREE LENGTH (mm): 175
FRONT SPRING I.D. (mm): ID65
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -25
REAR RECOMMENDED RIDE HEIGHT (inch): -1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -81
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 19
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.7
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -35
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.4
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -15
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.6
REAR SPRING RATE (kgf/mm): 7
REAR SPRING RATE (lbs/in): 392
REAR SPRING SP PART#: SW070-01175
REAR SPRING FREE LENGTH (mm): 175
REAR SPRING I.D. (mm): ID70
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL: RR: INTERIOR NEEDS TO BE REMOVED, MODIFIED AND/OR RELOCATED TO AVOID INTERFERENCE WITH THE MOTOR.
EDFC MOTOR KIT 1: EDK05-12140
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT: EDK06-K4474
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: RR: INTERIOR NEEDS TO BE REMOVED, MODIFIED AND/OR RELOCATED TO AVOID INTERFERENCE WITH THE MOTOR.

FITMENT NOTES

MAKE: SUBARU
MODEL: WRX
YEAR: 2015-2021
CHASSIS: VAG
TRIM:
MOTOR SIZE: 2000
DRIVETRAIN: 4WD
