TEIN RX1 Coilovers 2017-2021 TOYOTA 86 ZNA 2000 FR

Full-Scale Ride Height Adjustable Shock Absorber to Enable Camber Angle Adjustment on Minivans

ADDITIONAL INFORMATION

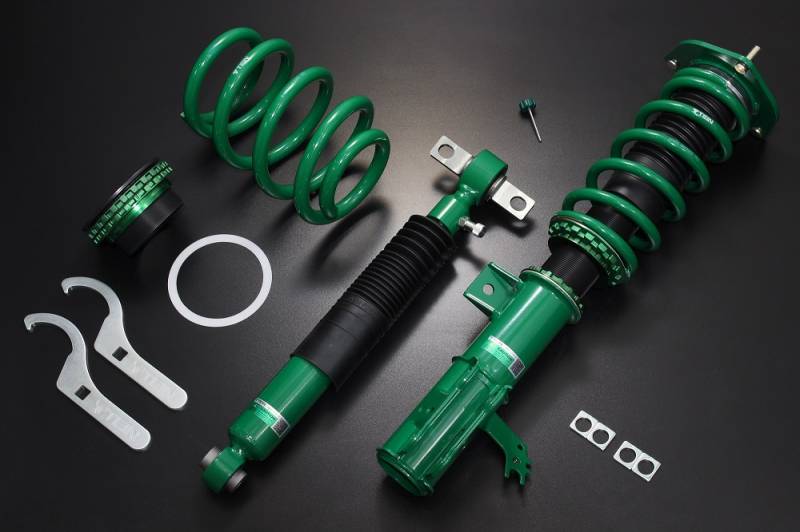

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: RX1
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: CAMBER ADJ
FRONT RECOMMENDED RIDE HEIGHT (mm): -35
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -70
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -13
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.5
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -25
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1
FRONT SPRING RATE (kgf/mm): 6
FRONT SPRING RATE (lbs/in): 336
FRONT SPRING SP PART#: SA060-01150S
FRONT SPRING FREE LENGTH (mm): 150
FRONT SPRING I.D. (mm): ID70
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -30
REAR RECOMMENDED RIDE HEIGHT (inch): -1.2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -74
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.9
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.3
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -40
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -20
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -0.8
REAR SPRING RATE (kgf/mm): 6
REAR SPRING RATE (lbs/in): 336
REAR SPRING SP PART#: SW060-01175
REAR SPRING FREE LENGTH (mm): 175
REAR SPRING I.D. (mm): ID70
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL: RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.
EDFC MOTOR KIT 1: EDK05-12140
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT: EDK06-K4474
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.

FITMENT NOTES

MAKE: TOYOTA
MODEL: 86
YEAR: 2017-2021
CHASSIS: ZNA
TRIM:
MOTOR SIZE: 2000
DRIVETRAIN: FR
