TEIN RX1 Coilovers 2006-2013 LEXUS IS350 GSE21L 3500 FR

Full-Scale Ride Height Adjustable Shock Absorber to Enable Camber Angle Adjustment on Minivans

ADDITIONAL INFORMATION

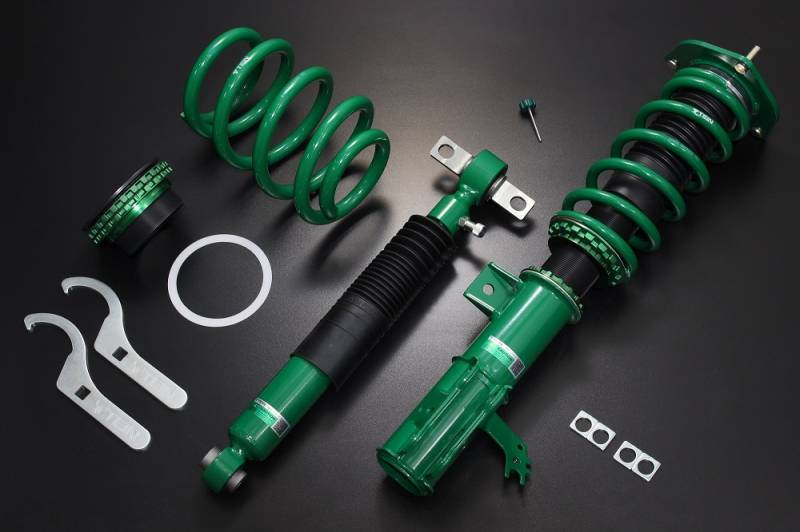

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: RX1
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: R/U
FRONT RECOMMENDED RIDE HEIGHT (mm): -45
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -97
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -7
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.3
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -55
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -35
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.4
FRONT SPRING RATE (kgf/mm): 8
FRONT SPRING RATE (lbs/in): 448
FRONT SPRING SP PART#: SB080-01200
FRONT SPRING FREE LENGTH (mm): 200
FRONT SPRING I.D. (mm): ID70
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -40
REAR RECOMMENDED RIDE HEIGHT (inch): -1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -141
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -5.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.3
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -50
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
REAR SPRING RATE (kgf/mm): 8
REAR SPRING RATE (lbs/in): 448
REAR SPRING SP PART#: SV080-01225
REAR SPRING FREE LENGTH (mm): 225
REAR SPRING I.D. (mm): ID65
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1: EDK05-12120
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: DUE TO INDIVIDUAL DIFFERENCES, INNER FENDER MAY NEED TO BE CUT IF IT INTERFERES WITH THE SPRING.

FITMENT NOTES

MAKE: LEXUS
MODEL: IS350
YEAR: 2006-2013
CHASSIS: GSE21L
TRIM:
MOTOR SIZE: 3500
DRIVETRAIN: FR
