TEIN S.TECH Lowering Springs 2006-2008 AUDI S4 B7S 4200 4WD

TEIN S.Tech Springs are an excellent step towards suspension tuning. They offer approximately a 1.5 inch drop for a more aggressive appearance and increased road holding capability. Designed to be used with OEM or OEM replacement shocks. Each application is road tested in North America for the proper balance between performance and comfort. Comes with a 1 year limited warranty, spring length is guaranteed not to sag more than 5mm, and be clear of any manufacturer defects.

Chrome Vanadium SAE9254V Construction
Progressive Spring Rate Design
Includes Silencer Rubber on certain applications
Green Powder Coat Finish
Developed to be used in conjunction with OEM dampers
1-year Manufacturers Defect and Sag Warranty. Covers over 5mm sag, breakage, deformity, and noise. Does not cover powder coat finish and rusting.

ADDITIONAL INFORMATION

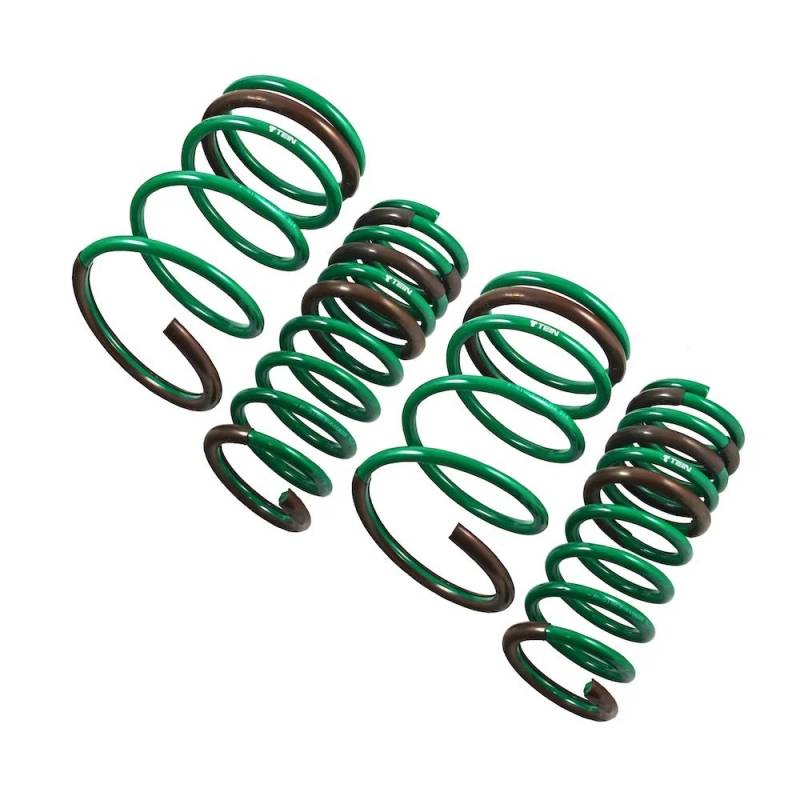

Image is only a representation of springs. TEIN doesn't have vehicle specific images. Your springs will be specific to your vehicle.

PRODUCT: S.TECH
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT:
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
FRONT UPPER MOUNT:
FRONT RECOMMENDED RIDE HEIGHT (mm): -36
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
FRONT SPRING RATE (kgf/mm): 8.7
FRONT SPRING RATE (lbs/in): 487
FRONT SPRING SP PART#: S1J00-13087-C
FRONT SPRING FREE LENGTH (mm): 253
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT:
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
REAR UPPER MOUNT:
REAR RECOMMENDED RIDE HEIGHT (mm): -29
REAR RECOMMENDED RIDE HEIGHT (inch): -1.1
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
REAR SPRING RATE (kgf/mm): 8.7
REAR SPRING RATE (lbs/in): 487
REAR SPRING SP PART#: S1J01-13087-C
REAR SPRING FREE LENGTH (mm): 235
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 4DR/6CYL/TURBO. FT: CUT BUMP RUBBER AT 25MM AND 40MM FROM THE TOP AND USE THE UPPER AND LOWER PORTIONS. THE MIDDLE PART IS NOT NEEDED. RR: CUT BUMP RUBBER AT 25MM AND 45MM FROM THE TOP AND USE THE UPPER AND LOWER PORTIONS. THE MIDDLE PART IS NOT NEEDED.

FITMENT NOTES

MAKE: AUDI
MODEL: S4
YEAR: 2006-2008
CHASSIS: B7S
TRIM:
MOTOR SIZE: 4200
DRIVETRAIN: 4WD
