TEIN STREET BASIS Z Coilovers 1992-2000 LEXUS SC400 UZZ30 4000 FR

Basic Models for Street Use. Superior Quality Made Affordable!

Thread-Type Adjustable
Twin-Tube
Uses OE Mounts
Durable & Reliable

ADDITIONAL INFORMATION

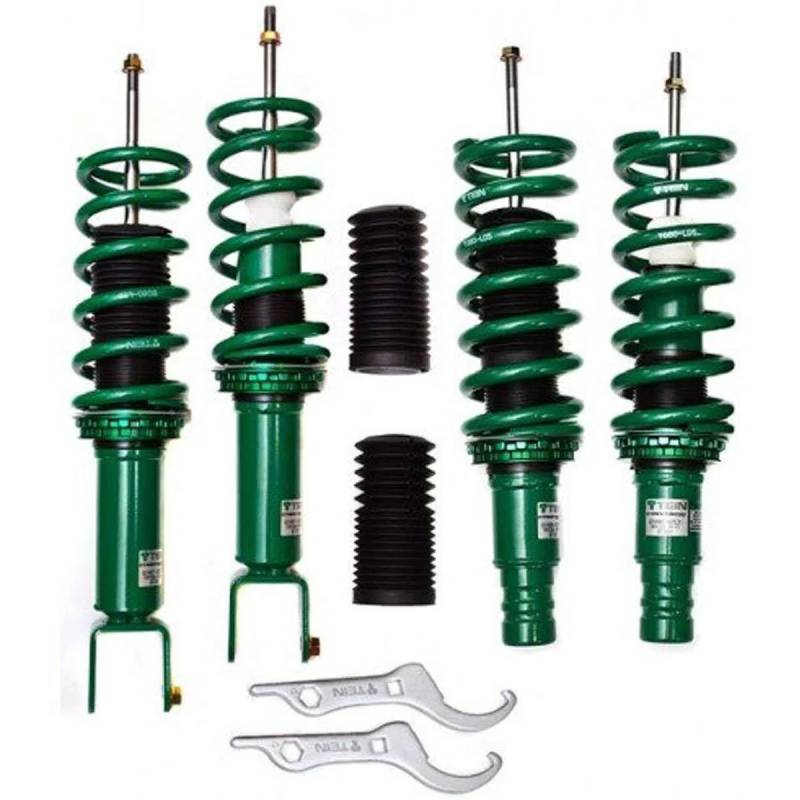

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: STREET BASIS Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: N
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
FRONT UPPER MOUNT: OEM
FRONT RECOMMENDED RIDE HEIGHT (mm): -40
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.6
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -93
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -10
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -50
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -30
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.2
FRONT SPRING RATE (kgf/mm): 12
FRONT SPRING RATE (lbs/in): 672
FRONT SPRING SP PART#: S8T60-13120
FRONT SPRING FREE LENGTH (mm): 250
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT: N
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: N
REAR UPPER MOUNT: OEM
REAR RECOMMENDED RIDE HEIGHT (mm): -35
REAR RECOMMENDED RIDE HEIGHT (inch): -1.4
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -95
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): -19
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): -0.7
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -25
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1
REAR SPRING RATE (kgf/mm): 7
REAR SPRING RATE (lbs/in): 392
REAR SPRING SP PART#: S8T61-13070
REAR SPRING FREE LENGTH (mm): 250
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 2DR/8CYL

FITMENT NOTES

MAKE: LEXUS
MODEL: SC400
YEAR: 1992-2000
CHASSIS: UZZ30
TRIM:
MOTOR SIZE: 4000
DRIVETRAIN: FR
