TEIN FLEX AVS Coilovers 2013-2020 LEXUS GS350 GRL10L 3500 FR

AVS, available on some of Toyota & Lexus vehicles, normally has to be disabled when the suspensions are replaced with non-OE ones.

Well, that is no longer the case!

FLEX AVS enables ride height adjustment without deactivating AVS.

Newly-designed "AVS Needle" for damping force adjustment makes it possible to provide broader damping force adjustable range within the operating angle of AVS actuator.

Full-length Adjustable
Twin-Tube
Hydraulic Bump Stopper
Mounts Included
Replacement Serivce
Durable & Reliable

ADDITIONAL INFORMATION

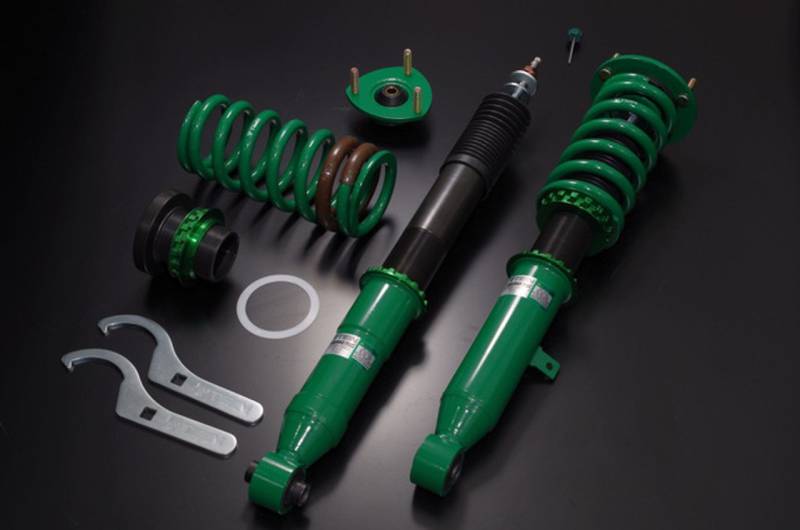

Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.

PRODUCT: FLEX AVS
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: R/U
FRONT RECOMMENDED RIDE HEIGHT (mm): -35
FRONT RECOMMENDED RIDE HEIGHT (inch): -1.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -101
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -4
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 3
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.1
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -25
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1
FRONT SPRING RATE (kgf/mm): 8
FRONT SPRING RATE (lbs/in): 448
FRONT SPRING SP PART#: SB080-01200
FRONT SPRING FREE LENGTH (mm): 200
FRONT SPRING I.D. (mm): ID70
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -35
REAR RECOMMENDED RIDE HEIGHT (inch): -1.4
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -67
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -2.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 2
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0.1
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -25
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1
REAR SPRING RATE (kgf/mm): 12
REAR SPRING RATE (lbs/in): 672
REAR SPRING SP PART#: S6Q63-01120
REAR SPRING FREE LENGTH (mm): 223
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: F SPORT

FITMENT NOTES

MAKE: LEXUS
MODEL: GS350
YEAR: 2013-2020
CHASSIS: GRL10L
TRIM:
MOTOR SIZE: 3500
DRIVETRAIN: FR
