TEIN S.TECH Lowering Springs 2006-2012 MITSUBISHI ECLIPSE DK4A GT/6CYL 3800 FF

TEIN S.Tech Springs are an excellent step towards suspension tuning. They offer approximately a 1.5 inch drop for a more aggressive appearance and increased road holding capability. Designed to be used with OEM or OEM replacement shocks. Each application is road tested in North America for the proper balance between performance and comfort. Comes with a 1 year limited warranty, spring length is guaranteed not to sag more than 5mm, and be clear of any manufacturer defects.

Chrome Vanadium SAE9254V Construction
Progressive Spring Rate Design
Includes Silencer Rubber on certain applications
Green Powder Coat Finish
Developed to be used in conjunction with OEM dampers
1-year Manufacturers Defect and Sag Warranty. Covers over 5mm sag, breakage, deformity, and noise. Does not cover powder coat finish and rusting.

ADDITIONAL INFORMATION

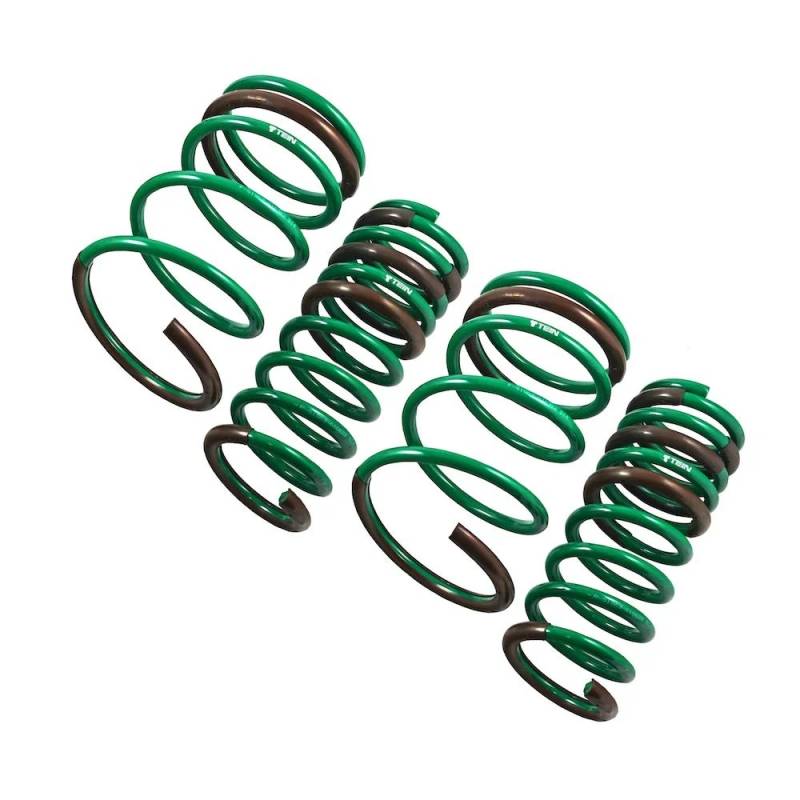

Image is only a representation of springs. TEIN doesn't have vehicle specific images. Your springs will be specific to your vehicle.

PRODUCT: S.TECH
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT:
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
FRONT UPPER MOUNT:
FRONT RECOMMENDED RIDE HEIGHT (mm): -63
FRONT RECOMMENDED RIDE HEIGHT (inch): -2.5
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
FRONT SPRING RATE (kgf/mm): 4.6
FRONT SPRING RATE (lbs/in): 258
FRONT SPRING SP PART#: S1R96-13046-C
FRONT SPRING FREE LENGTH (mm): 295
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT:
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
REAR UPPER MOUNT:
REAR RECOMMENDED RIDE HEIGHT (mm): -66
REAR RECOMMENDED RIDE HEIGHT (inch): -2.6
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
REAR SPRING RATE (kgf/mm): 3.2
REAR SPRING RATE (lbs/in): 179
REAR SPRING SP PART#: S1R97-13032-C
REAR SPRING FREE LENGTH (mm): 307
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 6CYL. FT: CUT BUMP RUBBER AT 25MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 20MM FROM THE BOTTOM AND USE THE UPPER PORTION.

FITMENT NOTES

MAKE: MITSUBISHI
MODEL: ECLIPSE
YEAR: 2006-2012
CHASSIS: DK4AGT/6CYL
MOTOR SIZE: 3800
DRIVETRAIN: FF
