TEIN HIGH.TECH Lowering Springs 1997-2002 HONDA PRELUDE BB6 2200 FF

TEIN High.Tech springs utilize the latest spring and material technology to optimize comfort, performance, and quality. Designed and tested in North America to be used in conjunction with OEM or similar shocks for excellent ride comfort and slightly increased handling. The line is produced with Vanadium (SAE9254V), which is durable, lightweight, and has properties to retain more spring stroke. High.Tech springs are designed for those seeking a slightly lowered stance while maintaining high ride quality at a reasonable price. Most vehicles will attain a 1.2 inch drop for a more attractive appearance, added performance, and excellent comfort. Includes a one year limited warranty.

Chrome Vanadium SAE9254V Construction
Progressive Spring Rate Design
Includes Silencer Rubber on certain applications
Gold Powder Coat Finish
Developed to be used in conjunction with OEM dampers
1-year Manufacturers Defect and Sag Warranty. Covers over 5mm sag, breakage, deformity, and noise. Does not cover powder coat finish and rusting.

ADDITIONAL INFORMATION

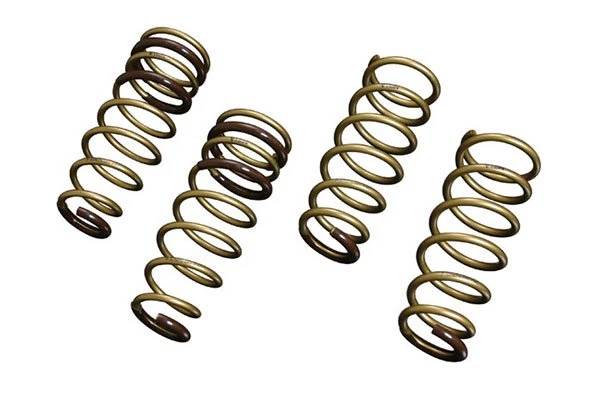

Image is only a representation of springs. TEIN doesn't have vehicle specific images. Your springs will be specific to your vehicle.

PRODUCT: HIGH.TECH
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT:
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
FRONT UPPER MOUNT:
FRONT RECOMMENDED RIDE HEIGHT (mm): -21
FRONT RECOMMENDED RIDE HEIGHT (inch): -0.8
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
FRONT SPRING RATE (kgf/mm): 3.9
FRONT SPRING RATE (lbs/in): 218
FRONT SPRING SP PART#: P7A30-0U
FRONT SPRING FREE LENGTH (mm): 324
FRONT SPRING I.D. (mm):
REAR DAMPING FORCE ADJUSTMENT:
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE:
REAR UPPER MOUNT:
REAR RECOMMENDED RIDE HEIGHT (mm): -19
REAR RECOMMENDED RIDE HEIGHT (inch): -0.7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): 0
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): 0
REAR SPRING RATE (kgf/mm): 3.3
REAR SPRING RATE (lbs/in): 185
REAR SPRING SP PART#: P7A31-0U
REAR SPRING FREE LENGTH (mm): 345
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY:
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1:
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 2DR/4CYL/INCL. 4WS. FT: CUT BUMP RUBBER AT 15MM FROM THE BOTTOM AND USE THE UPPER PORTION. RR: CUT BUMP RUBBER AT 33MM FROM THE BOTTOM AND USE THE UPPER PORTION.

FITMENT NOTES

MAKE: HONDA
MODEL: PRELUDE
YEAR: 1997-2002
CHASSIS: BB6
MOTOR SIZE: 2200
DRIVETRAIN: FF
