Baja Designs LP9 Series Driving Combo Pattern LED Light Pods - Clear

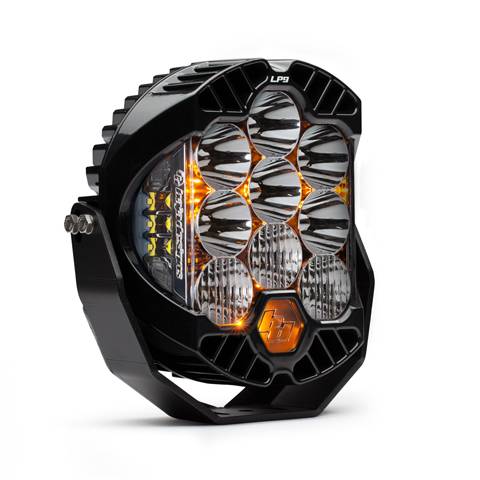

LP9 Pro LED Light Pod (Driving/Combo; Clear)

A design that was inspired by Baja Designs legendary 8 inch La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today. The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200 degree spread of usable light. The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs. Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Satisfaction Guarantee -30-Day Money Back Guarantee
Limited Lifetime Warranty -Complete Purchase Protection
uService -Replaceable Lenses And Optics
ClearView -All The Light, Right Where You Need It
MoistureBlock -Waterproof, Rain Proof, Submersible
CopperDrive -Only LED Driven At 100 Percent
5000K Daylight -Less Driver Fatigue, Natural Color

ADDITIONAL INFORMATION

Baja Designs LP9 Series Driving Combo Pattern LED Light Pods - Clear

Associated Comments: One Light Pod
Amperage Rating (A): 7.6
Average Rated Life (hr.): 49,930
Backlight Amperage Rating (A): 0.2
Backlight Wattage (W): 2.8
Beam Pattern: Driving/Combo
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 11,025
Depth (in.): 3.25
Description: Driving/Combo; Clear
Effective Lighting Score (ELS): 9757 / (6.8, 142 degree) / 665
Height (in.): 8
Housing Color: Black
Housing Material: Hard Anodized Machined Aluminum
Length (in.): 8
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity: 9
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Patent No.: 5,504,603
Product Type: LP9 Pro LED Light Pod
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Secondary Amperage Rating (A): 1.52
Secondary Brightness (Lumens): 2,280
Secondary Light Quantity: 6 LEDs
Secondary Lighting Technology: LED
Secondary Lighting Type: Integrated Peripheral Technology (IPT)
Secondary Wattage (W): 21
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Terminal Connector: DT06-4S Deutsch
Terminal Type: Mating Connector
Title: Baja Designs - 320003 - LP9 Pro LED Auxiliary Light Pod
Universal or Specific: Universal
Wattage (W): 105
Weight (lbs.): 6.5
Wiring Harness Included: No
Add-On: Accessories-328002-Rock Guard (Amber)
Add-On: Accessories-328001-Rock Guard (Black)
Add-On: Accessories-328003-Rock Guard (Clear)
Add-On: Accessories-668613-Lens Kit (Driving/Combo; Amber)
Add-On: Accessories-668603-Lens Kit (Driving/Combo; Clear)
Add-On: Accessories-668611-Lens Kit (Spot; Amber)
Add-On: Accessories-668601-Lens Kit (Spot; Clear)
Add-On: Associated Products-660302-Anti Theft Hardware Kit - 1/4-20x1/2 Socket Pin Head Bolts
Add-On: Associated Products-660303-Anti Theft Hardware Kit - 3/8 in. Tamperproof Nuts
Add-On: Compatible Products-640176-Backlit Add-On Harness
Add-On: Compatible Products-640168-Controller Module Harness
Add-On: Compatible Products-640172-Splitter Harness (2-Light Max)
Add-On: Compatible Products-640167-Upfitter Lock Out Harness

FITMENT NOTES

Universal
