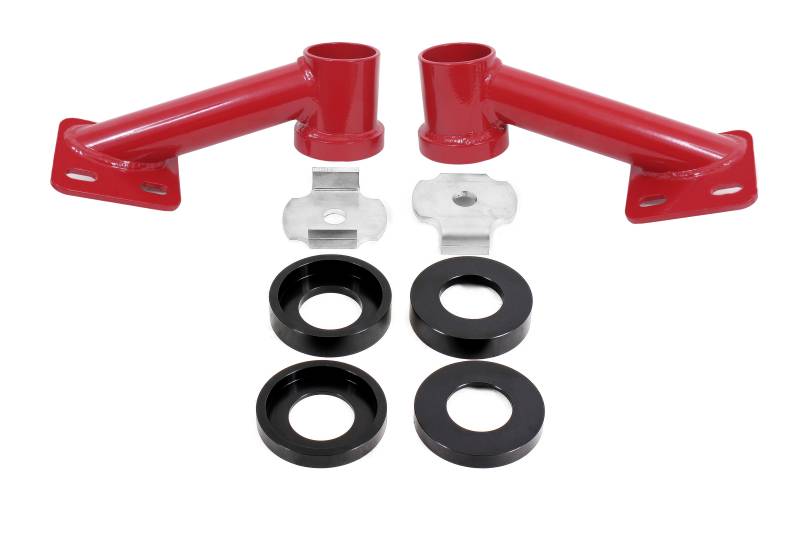

BMR 15-17 S550 Mustang Cradle Bushing Lockout Kit - Red

BMR Suspension designed the CB005 Cradle Bushing Lockout Kit for any application. This 100% bolt-on kit use existing boltholes and hardware, allowing for easy installation with simple hand tools.

Built from 6061-T6 billet aluminum, stainless steel, and heavy-duty 1 5/8-inch DOM steel tubing, BMR?s CB005 Cradle Bushing Lockout Kit is designed to nearly eliminate cradle bushing deflection, which is one of the biggest causes of wheelhop. BMR?s CB005?s billet aluminum upper bushing lockout rings capture the inner bushing sleeve (front and rear) and the outer lip of the bushing cup on the cradle (front). The lower bushing locating washers (front) capture the bottom portion of the bushings? inner sleeves. By capturing both parts of the bushings? inner sleeves, movement on any plane (fore/aft, lateral, and vertical) is nearly eliminated. This assembly is completed with bolt-on cradle braces that replace the factory sheer plates. The large lug on the cradle side of the braces positively locates the cradle, ensuring it is perfectly centered under the car. The two bolts in the frame ensure the location of the cradle can?t change under any form of driving.

100% bolt-on design
Does not fit convertible models, please refer to part # CB010
No fabrication needed
Installs with simple hand tools
CNC-machined 6061-T6 billet aluminum upper bushing lockout rings
Laser-cut lower bushing support washers
CNC-formed stainless steel lower bushing support plates
1 5/8-inch DOM steel tubing cradle braces
Positively locates the rear IRS Subframe
Greatly reduces stock subframe bushing deflection and wheel-hop
Uses factory bolt-holes and hardware
Adds a solid rear jacking point to each side of the vehicle
Durable powdercoat finish
Available in black hammertone and red powdercoat
Proudly designed in the U.S.A.
Proudly built in the U.S.A
