Baja Designs S1 Spot LED Light w/ Mounting Bracket Pair
Description

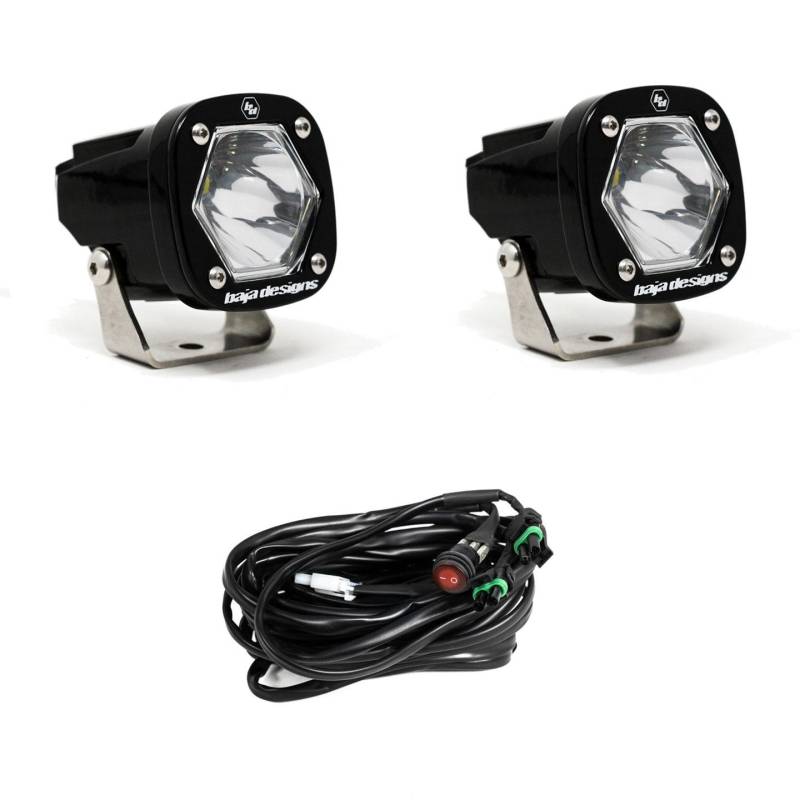

S1 Black LED Light Pod Pair (Spot; Clear)
Designed from the ground up our new S1 fills the shoes of a large light in a small package! The S1 utilizes a highly specialized reflector and LED combination to outshine the competition. With the 2.1 inch length, width, and height the S1 is highly versatile for any application that is in need of light. Whether you're looking for a light to drive off of, or something to light up a campsite the S1 will exceed your expectations! US Patent Number 11273751.
Satisfaction Guarantee -30-Day Money Back Guarantee
Limited Lifetime Warranty -Complete Purchase Protection
uService -Replaceable Lenses And Optics
ClearView -All The Light, Right Where You Need It
MoistureBlock -Waterproof, Rain Proof, Submersible
CopperDrive -Only LED Driven At 100 Percent
5000K Daylight -Less Driver Fatigue, Natural Color
Additional Information
Baja Designs S1 Spot LED Light w/ Mounting Bracket Pair
Associated Comments: Two Light Pods, Wiring Harness
Amperage Rating (A): 1.45
Average Rated Life (hr.): 49,930
Beam Pattern: Spot
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 2,375
Depth (in.): 2.1
Description: Spot; Clear; Pair
Effective Lighting Score (ELS): 1690 / (5.4, 72 degree )/ 107
Height (in.): 2.1
Housing Color: Black
Housing Material: Hard Anodized and Powder Coated Cast Aluminum
Length (in.): 2.1
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 2
Lighting Modes: Beam
Lighting Quantity: 1
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Product Type: S1 LED Light Pod Pair w/ Wiring Harness
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Warning Label: Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Yes/No: Yes
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Title: Baja Designs - 387801 - S1 Black LED Auxiliary Light Pod Pair
Voltage: 9-28
Wattage (W): 20
Weight (lbs.): 0.4
Wiring Harness Included: Yes
Add-On: Accessories-388001-Rock Guard (Black)
Add-On: Accessories-388003-Rock Guard (Clear)
Add-On: Accessories-388002-Rock Guard (Amber)
Add-On: Accessories-660116-Lens Kit (Spot; Clear)
Add-On: Accessories-660118-Lens Kit (Wide Cornering; Amber)
Add-On: Accessories-660117-Lens Kit (Wide Cornering; Clear)
Add-On: Accessories-660119-Lens Kit (Work/Scene; Clear)
Add-On: Compatible Products-640165-Harness Extension (10 ft.)
Add-On: Compatible Products-613607-Harness Splitter
Add-On: Compatible Products-613600-Harness/Splitter (3 Light Max)
Add-On: Compatible Products-613609-Harness/Splitter (55 Inch)
Add-On: Compatible Products-640117-Harness/Splitter (On/Off)
Add-On: Compatible Products-640093-Upfitter Harness
Add-On: Compatible Products-640164-Wiring Harness (Hi/Low)
Compatible Vehicles
Fitment Notes
Universal
Details
- 387801
- 387801
- 810031740284
- Baja Designs
- Available
- Usually ships within 24 hours
- New
Categories
Shipping Information
- Item Requires Shipping
- 3.0 lbs.
- W7.0000” x H5.0000” x L7.0000”
- Free Shipping!
