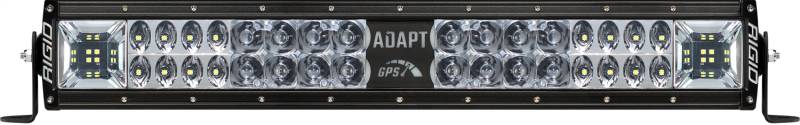

RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 20 Inch
Description
RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 20 Inch
The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.
Universal Fit, Fits All Existing E-Series Grilles and Mounts
Use In Adapt Mode Or All On
Limited Lifetime Warranty
Alloy Housing and Heatsink
Unbreakable Polycarbonate Lens
Pressure Equalizing Vent
Black Exposed Printed Circuit Board
Patented Optics
50,000 Hr+ LED Lifespan
Off Road Use Only
Harness, Switch & Relay Included
3 Optic Zones - Scene, Driving, Spot
Seamless Beam Transition
Slow Speed, Moderate Speed & High Speed Beam Patterns
9-36 VDC
Two Layers of Adaptive Response
Active Power Management System - Power Capacity Sensing
Active View Technology - Internal GPS Module
Additional Information
Title: RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 20 Inch
Associated Comments: Professional Installation Recommended, RIGID Adapt
A = LUX at 10 Meters: 3,106
Add-On: 11001, 11002, 11003, 11008, 46590, 1063, 1067, 1031, 30130, 30140, 30150
ASIN: No
B = Beam Distance with 1 LUX: 557
C = Beam Distance with .25 LUX: 1,115
Field Horizontal (Measured in Degrees): 17
Field Vertical (Measured in Degrees): 16
Number of LEDs: 40
Peak Beam Intensity (cd): 310,578
Product Family: Adapt
Product Fits What: Universal Fit
Product Weight: 6.1
Prop 65 Yes/No: No
Raw Lumens: 11,968
Size: 20 in.
Title: RIGID Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 20 Inch
Watts: 97
What's In The Package: Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
Zone 1 A: 51.89
Zone 1 Amp Draw: 6.3
Zone 1 B: 72
Zone 1 C: 144.1
Zone 1 Horizontal Field beam angle: 102.3
Zone 1 LED's count: 8
Zone 1 Peak CD: 5,189
Zone 1 Raw Lm: 8,641
Zone 1 Vertical Field beam angle: 96.5
Zone 1 Watts: 88
Zone 2 A: 709.48
Zone 2 Amp Draw: 5.9
Zone 2 B: 266.4
Zone 2 C: 532.7
Zone 2 Horizontal Field beam angle: 48.4
Zone 2 LED's count: 16
Zone 2 Peak CD: 70,948
Zone 2 Raw Lm: 10,880
Zone 2 Vertical Field beam angle: 24.1
Zone 2 Watts: 82
Zone 3 A: 3105.78
Zone 3 Amp Draw: 6.9
Zone 3 B: 557.3
Zone 3 C: 1114.6
Zone 3 Horizontal Field beam angle: 17.3
Zone 3 LED's count: 16
Zone 3 Peak CD: 310,578
Zone 3 Raw Lm: 11,968
Zone 3 Vertical Field beam angle: 16.3
Zone 3 Watts: 97
Compatible Vehicles
Fitment Notes
Universal
Shipping Information
- Item Requires Shipping
- 9.0 lbs.
- W23.2500” x H6.0000” x L6.0000”
