Innovate Motorsports DB-Blue Kit (Blue LEDs LC-2 & O2 Sensor)

DB-Blue Kit (Blue LEDs, LC-2 & O2 Sensor)

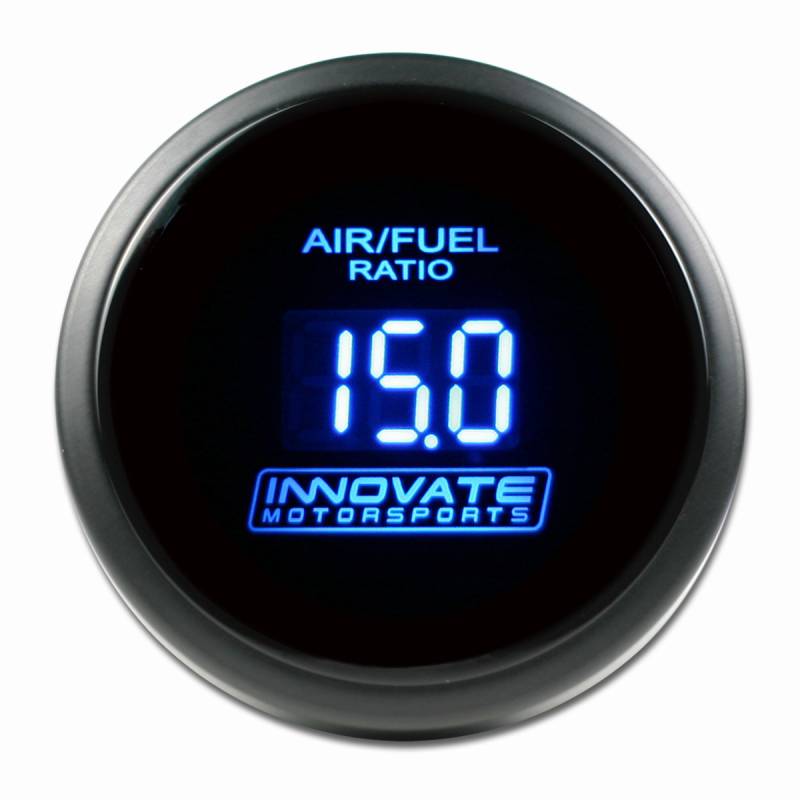

The Innovate Motorsports DB gauges are 52mm (2 1/16) air fuel gauges. Each gauge features a bright LED display (available in blue, green, or red). Each Gauge Kit includes the gauge, an LC-2 wideband controller, oxygen sensor, bung, serial cable, and the award-winning LogWorks engine-tuning software. For tuners seeking the most cost-effective way to start monitoring Air/Fuel Ratio, the DB series gauges offer an attractive option, while opening the world of true digital data acquisition and software engine analysis. For example, users can add multi-sensor interfaces, and log 5 critical parameters directly into any PC or laptop. Or they can get a PL-1 data logger for hundreds of hours of 32-channel data logging on an SD card. Best of all, the DB gauges include the powerful LogWorks software for synchronous high-speed logging of wideband data, other MTS sensors, and data from a growing list of piggyback fuel controllers and standalone or factory (OBD2) ECUs. This is the same software used by champion engine builders and racers.

Patented DirectDigital wideband sensor control, 100% digital wideband air/fuel ratio technology!
One additional available analog output (one connects to the gauge).
Easy set up and wiring (instructions included).
LC-2 incIudes Innovate serial in & out for adding additional modular tuning system (MTS) components. (Gauge itself is analog only- no serial).
Blackout appearance when unpowered.
Log Directly From The Lc-2S Digital Output Into Laptop W/Included Software
Comes complete with the patented award-winning LC-2 Wideband Controller, DB Gauge, Bosch 5-wire Wideband 02 Sensor, Bung, Serial Cable, LogWorks Software (Free Download), and instructions

ADDITIONAL INFORMATION

Innovate Motorsports DB-Blue Kit (Blue LEDs LC-2 & O2 Sensor)

Bezel Color: BLACK
Bezel Style: Innovate
Cup/Hole Size - Metric - CM: 5.2 CM
Cup/Hole Size - Standard - IN: 2.0625 in. IN
Dial Color: BLACK
Gauge Type: Wideband Air/Fuel Ratio (AFR)
Included Wire Harness: 3887, 3840
Includes Adapter/Fitting: 3839
Includes Sensor Unit: 3888
Lens Style: Flat, Smoked
Lighting Color: BLUE
Lighting Type: DIGITAL LED
Movement: Digital
Outer Bezel Diameter - Standard: 2.44 IN
Product Overall Depth: 2.4 IN
Product Overall Height: 2.44 IN
Product Overall Width: 2.44 IN
Product Type: Gauge Air/Fuel Ratio-Wideband
Prop 65 (C, R or CR): C
Prop 65 - Long Label: Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov.
Prop 65 - Short Label: WARNING: Cancer - www.p65warnings.ca.gov
PROP 65 WARNING: Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov.
Prop 65 Warning Label: Warning - Cancer.JPG
Prop 65 Yes/No: Y
Range: 7.4: 1 - 22.4: 1 AFR
Size - Metric - CM: 5.2 CM
Size - Standard - IN: 2.0625 in. IN
Title: DB-Blue Gauge / LC-2 Kit
Related Item: 77020
Upsell: 3891

FITMENT NOTES

None
