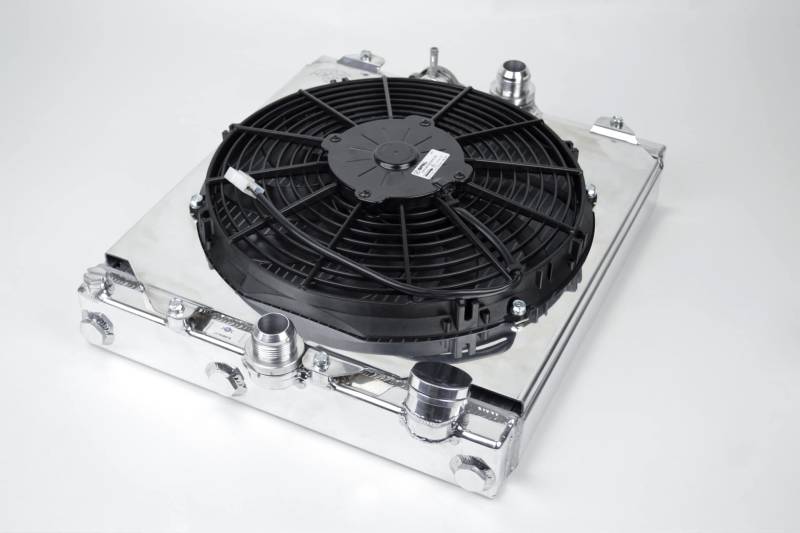

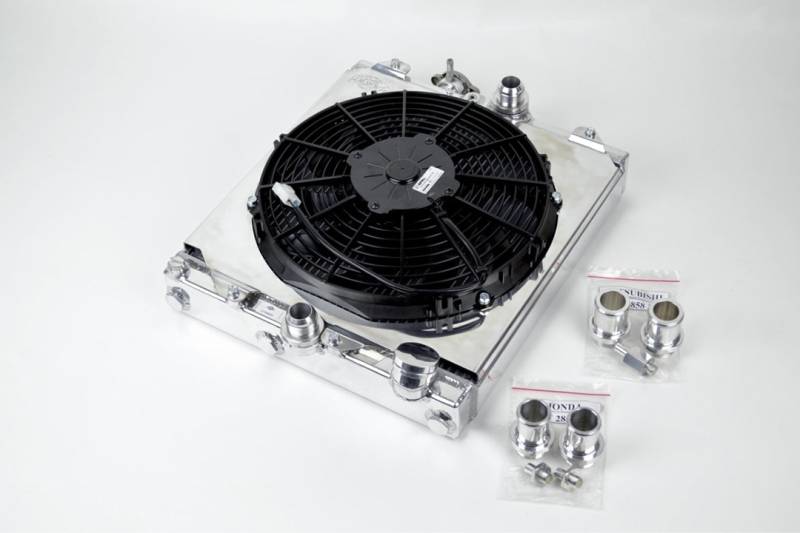

CSF Universal Half Radiator w/-16AN & Slip-On Fittings/12in SPAL Fan & Shroud

2858X
Limited Supply: only 3 remaining
Availability: Usually ships within 24 hours
Was: $519.00
Sale: $489.00
Save: 6%
Save: $30.00
Qty:
Free Shipping!

Description

Universal Half Radiator - Evo 7/8/9 / 92-00 Civic - w/ SPAL Fan & Shroud

CSF manufactures the most advanced and efficient radiator in the industry for your Evo/Civic/Custom Application. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has created the Ultimate Half radiator with direct fitment for the most popular 92-00 Honda Civic platform. Even better, it can be used as a universal radiator and comes with a direct-fitment kit for Mitsubishi Evolution 7/8/9 models as well. A true innovation of the industry's #1 selling model. Take your set up to the next level with this Half sized radiator. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.

2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined "Quick-Connect" Inlet/Outlet Connections
CNC Machined Brackets and Fittings for Superb Fit and Durability
All-Aluminum Race Style Drain Plug
1-Hour "Mirror Finish" Hand Polish
Drop-in Fit

Additional Information

CSF Universal Half Radiator w/-16AN & Slip-On Fittings/12in SPAL Fan & Shroud

Core Material: Aluminum
Title: Universal Half Radiator - Evo 7/8/9 / 92-00 Civic - w/ SPAL Fan & Shroud

Compatible Vehicles

Fitment Notes

1992-2000 Honda Civic
2003-2006 Mitsubishi Lancer

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W9.0000” x H21.0000” x L21.0000”
  • Free Shipping!
