CSF 20+ Toyota GR Supra High-Performance Auxiliary Radiator , Fits Both L&R Two Required

A90 Supra / BMW G-Series High-Performance Auxiliary Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Supra / BMW. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Don't be fooled by other high-performance aftermarket options that utilize the OEM plastic rock guard. The OEM rock guard's vertical channel design is specifically designed to only work with the tube spacing found on the OEM core. When the OEM rock guard is installed on an aftermarket radiator it actually blocks a significant amount of surface area. Obviously this is detrimental to the intended performance. During CSF's own R&D phase CSF analyzed both the OEM and other aftermarket offerings and decided to go the extra mile. CSF redesigned the included rock guard to allow maximum flow to the radiator core while still offering ample protection from small rocks and road debris - all proven on CSF's in-house wind tunnel. CSF's new Auxiliary Radiator fits both the left and right side of the vehicle as a drop-in fit. Thus requiring no modifications to install. Each features CNC machined mounting brackets and OEM style "Quick Connect" inlet/outlet connections. This makes for a true plug-and-play installation that does not interfere with aftermarket performance aero modifications.

2-Row 42mm Ultra High Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Drop-in Fit Requires No Modifications to Install
Tested and Proven by CSF's Global Network of R&D Partners Including Leading Time Attack Teams Tuners and Turbo Kit Manufacturers
6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology

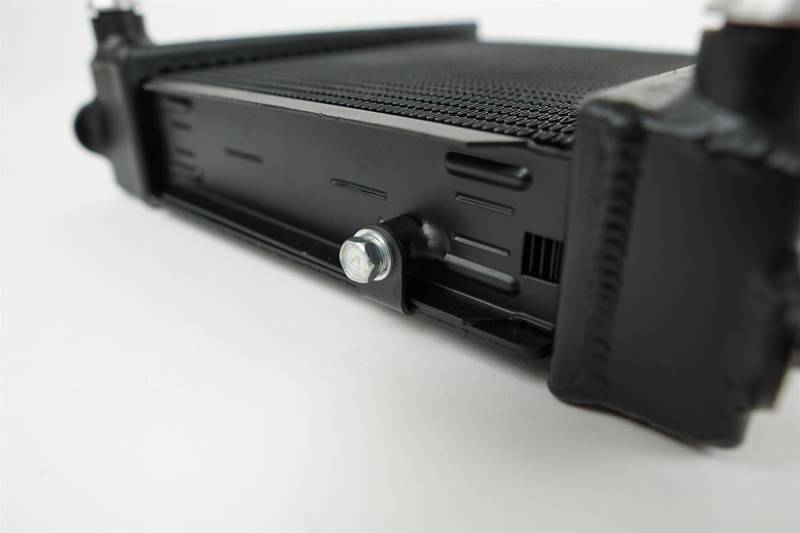

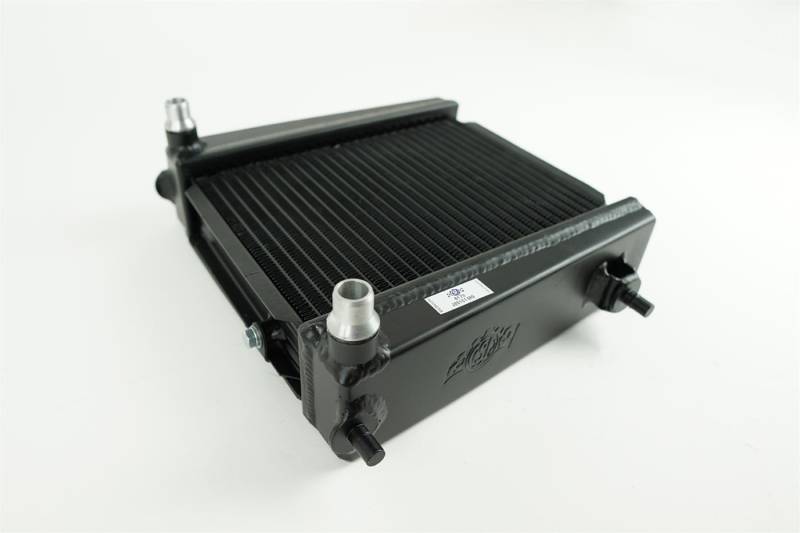

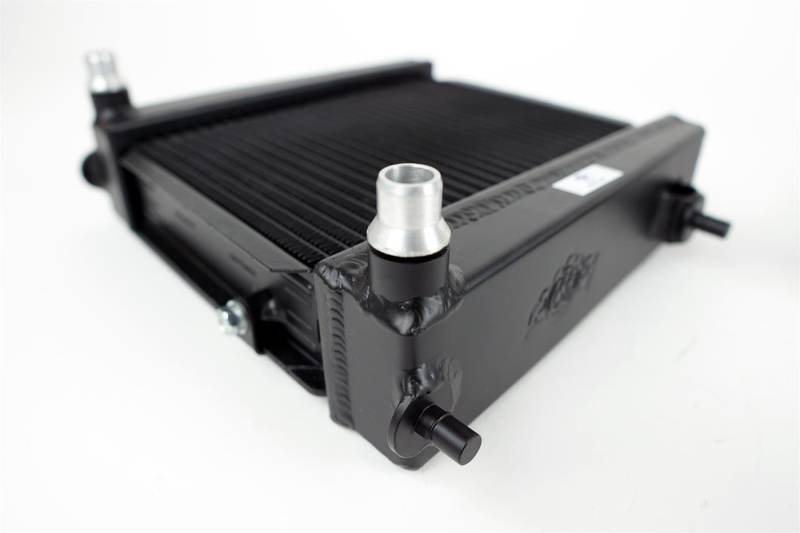

CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
100% All Aluminum TIG-Welded Construction

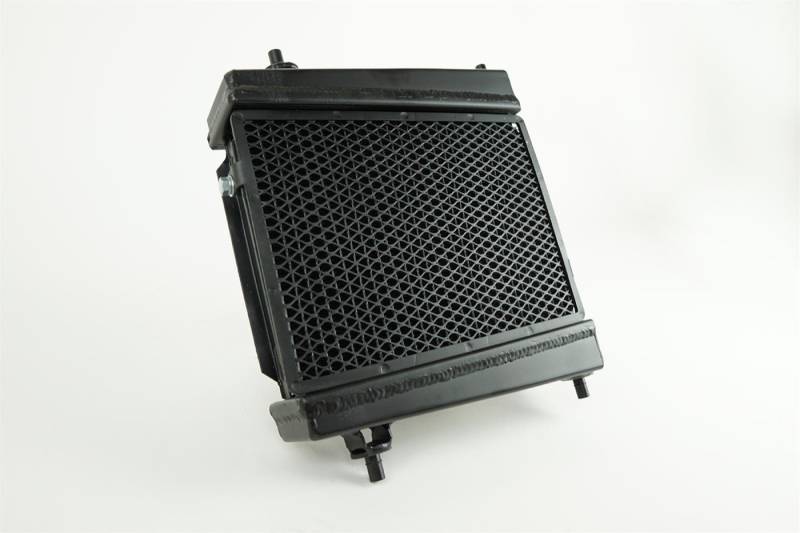

Includes Detachable Aluminum Rock Guard (Industry Exclusive)
Finished in a Thermal Black Protective Coating
Fits Both Left & Right Side of Vehicle
2-Year Limited Warranty

ADDITIONAL INFORMATION

ADD-ON: 7226
Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 6.75 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 9 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 0.625 in.
Inlet Location: Top
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 0.625 in.
Outlet Location: Bottom
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: A90 Supra / BMW G-Series High-Performance Auxiliary Radiator

Associated Comments: The CSF #8179 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2019-2022 BMW Z4
2020-2024 BMW M340i
2020-2024 BMW M340i xDrive
2020-2024 Toyota GR Supra
2021-2024 BMW M440i
2021-2024 BMW M440i xDrive
2022-2024 BMW M240i xDrive
2023-2024 BMW M240i
2024-2024 BMW M440i Gran Coupe
2024-2024 BMW M440i xDrive Gran Coupe
