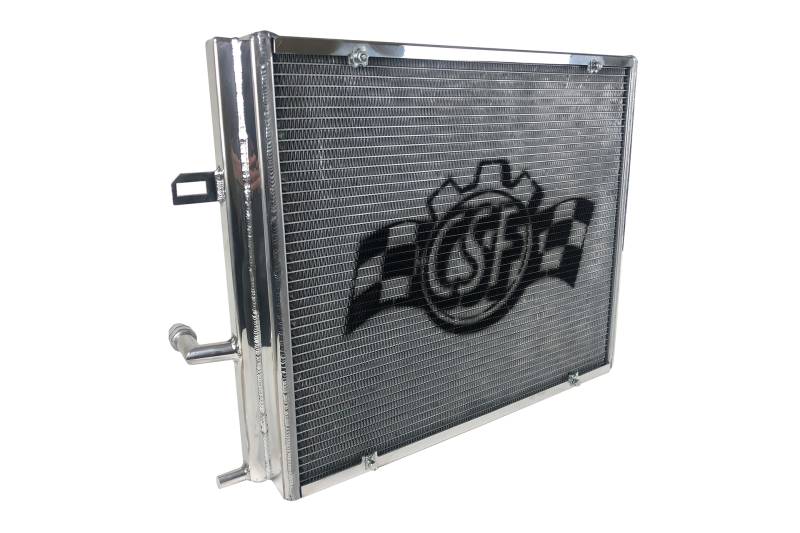

CSF BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard

BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Silver

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your B58/B48 Powered BMW with a CSF Heat Exchangers.

As the 3.0 Liter B58B30M0 (1st gen B58) turbo engine platform continues to be developed by the high performance industry and more power is extracted from the engine CSF's high performance heat exchanger for the BMW B58 engine will be a critical component to keeping the vehicle charge air cool and out of limp mode. The CSF BMW B58 upgraded heat exchanger for F-series vehicles will be especially important to install in upgraded turbo applications and/or vehicles running high performance tuning software.; The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design as well as more expensive aftermarket designs all have single-pass flow structures.; The CSF #8131 comes in a Polished Finish. It is also available in a Satin Black Finish for OEM+ look (CSF #8131B).

Core Size: 524mm Length x 478mm Height x 69mm Wide
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
1-Hour "Mirror Finish" Hand Polish
Replaces OEM Part Number: 17118741830
68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)
6.5mm Multi-Louvered Fin Height
Triple-Pass Flow Design

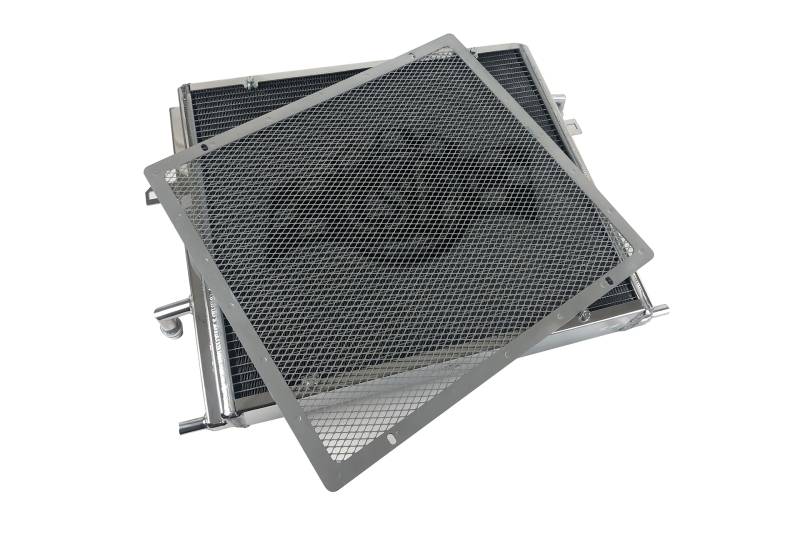

Included Detachable Rock Guard
OEM CNC Machined Mounting Location Pins and Brackets
Direct Plug-and-Play Design Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings
No Modifications Needed to Install

ADDITIONAL INFORMATION

ADD-ON: 8300C
Core Material: Aluminum
Finish/Color: Polished
Grade Type: Performance
Installation Type: Drop-In Fit Installation
Prop 65 Yes/No: No
Title: BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Silver

Associated Comments: The CSF #8131 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2016-2018 BMW 330e
2016-2018 BMW 340i
2016-2018 BMW 340i xDrive
2017-2018 BMW 330i
2017-2018 BMW 330i GT xDrive
2017-2019 BMW 330i xDrive
2017-2019 BMW 340i GT xDrive
2017-2020 BMW 430i
2017-2020 BMW 430i xDrive
2017-2020 BMW 430i xDrive Gran Coupe
2017-2020 BMW 440i
2017-2020 BMW 440i Gran Coupe
2017-2020 BMW 440i xDrive
2017-2020 BMW 440i xDrive Gran Coupe
2017-2021 BMW 230i
2017-2021 BMW 230i xDrive
2017-2021 BMW M240i
2017-2021 BMW M240i xDrive
