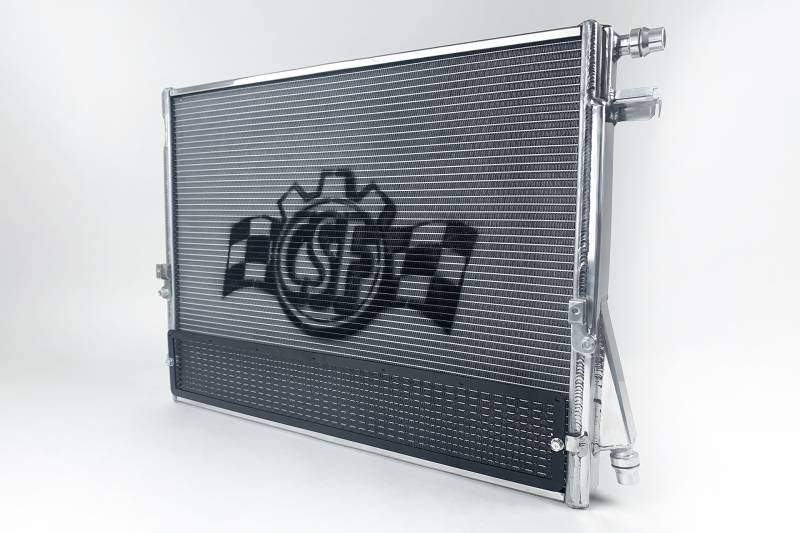

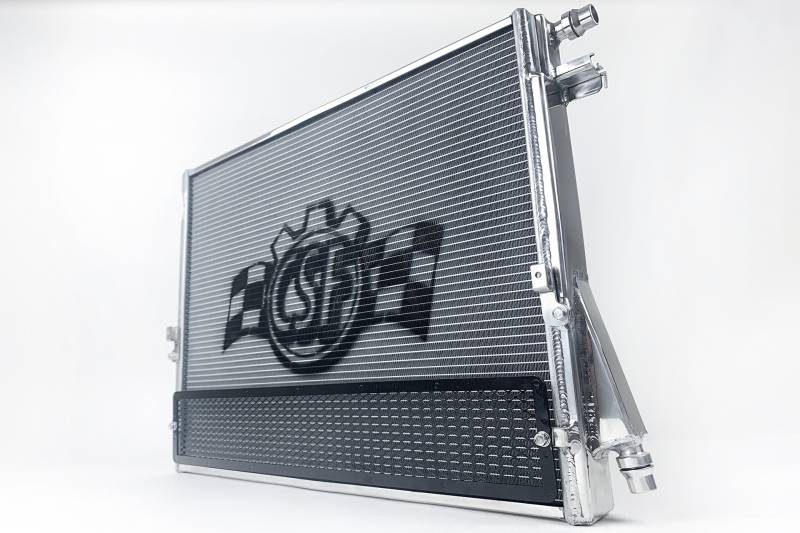

CSF 2020 Toyota GR Supra (A90) Heat Exchanger

A90 Supra / BMW G-Series High-Performance Heat Exchanger w/ Rock Guard

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your Supra / BMW with a CSF Heat Exchangers.

One of the most apparent problems for the 2nd gen B58 Motor is the liquid-cooled charge air cooler system quickly heat soaks with no ability to recover. This would cause the intake air temperatures (IATs) to spike resulting in the ECU cutting the power output of the vehicle and eventually putting the car into limp mode. CSF engineers witnessed the overheating issue first-hand as they were in attendance at the Global Time Attack Finals at Buttonwillow Raceway in November 2019. Several new heavily modified Supra racecars could barely go two or three laps in moderate ambient conditions without having the car go into limp mode forcing drivers to take a cool down lap (or two) with some even coming into the pits to have their front mount heat exchangers sprayed down with cold water.; CSF's B58 high-performance heat exchanger will be a critical component to keeping your Supra/BMW's charge air cool and out of limp mode. The upgraded heat exchanger is especially important when upgrading turbos and/or running performance tuning software. The original 2nd Gen B58 heat exchanger is a 1-row unit that is 25mm thick. In comparison CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. The CSF improved design includes billet transmission cooler mounts and metal rock guard with improved airflow characteristics. CSF is the only company to include a rock guard and incorporate OEM transmission cooler mounting points for a true plug-and-play "drop-in" fit.

Significantly Reduces Intake Air Temperature (IAT) for Maximum Performance (with Faster Heat Soak Recovery)
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Smooth Satin Finish
Tested and Proven by CSF's Global Network of R&D Partners Including Leading Time Attack Teams Tuners and Turbo Kit Manufacturers
Improves Air Flow to the Rest of the Cooling System for Both Lower Engine Coolant and Engine Oil Temperatures
2-Row 42mm Ultra High Performance Core & 6.5mm Tall Multi-Louvered Fin with CSF's Exclusive B-Tube Technology
CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Includes Rock Guard & Transmission Oil Cooler Mounting Kit (Industry Exclusive)
Drop-in
2-Year Limited Warranty

ADDITIONAL INFORMATION

ADD-ON: 7226
Core Material: Aluminum
Finish/Color: Satin
Grade Type: Performance
Installation Type: Drop-In Fit Installation
Prop 65 Yes/No: No
Title: A90 Supra / BMW G-Series High-Performance Heat Exchanger w/ Rock Guard

Associated Comments: The CSF #8154 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2019-2022 BMW 330i
2019-2022 BMW 330i xDrive
2019-2022 BMW Z4
2020-2024 BMW M340i
2020-2024 BMW M340i xDrive
2020-2024 Toyota GR Supra
2021-2022 BMW 430i
2021-2022 BMW 430i xDrive
2021-2024 BMW M440i
2021-2024 BMW M440i xDrive
2022-2023 BMW 430i Gran Coupe
2022-2024 BMW M240i xDrive
2022-2024 BMW M440i xDrive Gran Coupe
2023-2023 BMW 430i xDrive Gran Coupe
2023-2024 BMW M240i
2024-2024 BMW M440i Gran Coupe
