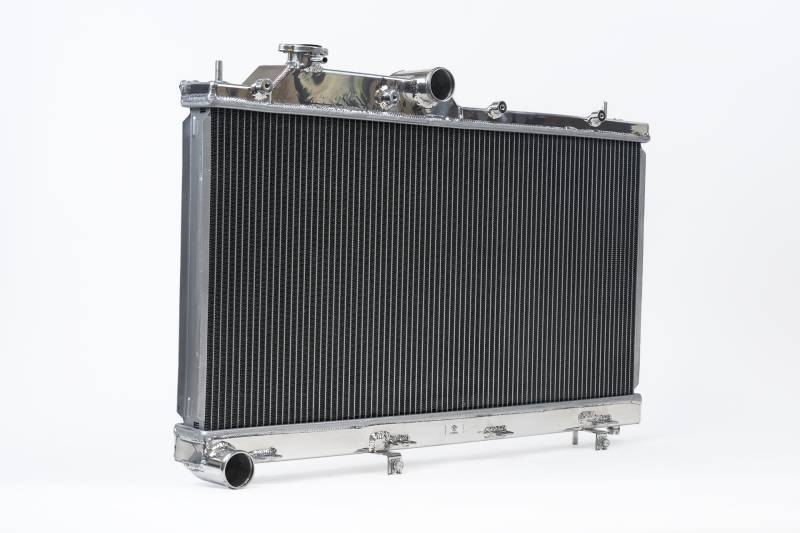

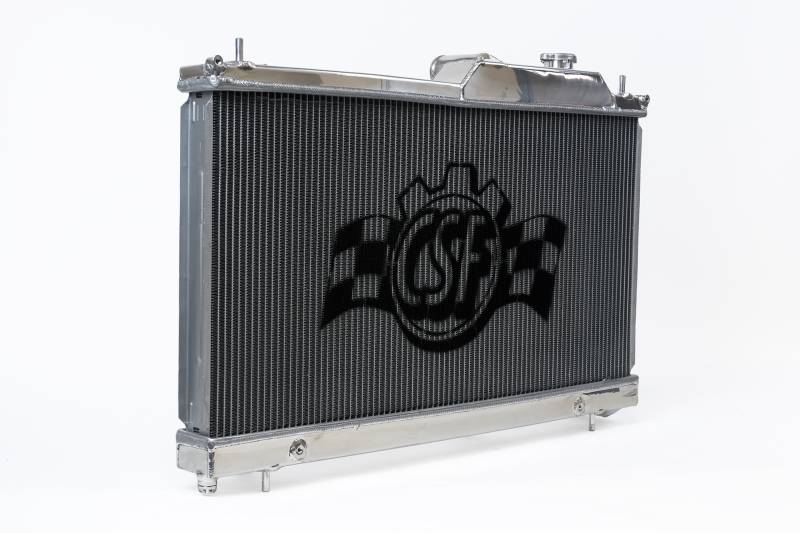

CSF 14-18 Subaru Forester High-Performance All-Aluminum Radiator

14-18 Subaru Forester High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your 4th Gen Subaru Forester. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Whether you are running the stout 2.5L naturally aspirated motor or the hot 2.0L turbo engine off-roading and overlanding can be a lot harder on it than you might expect. Between dealing with traction loss steep inclines and additional weight of gear there is almost always more strain on the engine. The result is above average operating temperatures that the factory radiator can struggle to keep up with. Especially on the turbo models. CSF has a long and successful track record with high-performance/heavy-duty off-road grade radiators. With most off-road vehicles the factory cooling components can easily become over stressed. This may be due to the demanding stress on the engine while climbing or dirt clogging up some of the cooling fins. The last thing you want is a radiator to fail while you're far from civilization.; The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. Efficiency is key in off-roading as speeds tend to be lower overall so you end up relying on the fans to move most of the air over the radiator. While the factory fans do a decent job pulling air through the radiator core it is still less airflow than you'd typically see in city driving. A larger and more efficient core will keep your engine temps in check and keep your engine running strong. Additionally the end tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application installation requires absolutely no modifications trimming or cutting.

2-Row - 42mm Heavy-Duty Ultra-High-Performance Dual Pass Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
1-Hour "Mirror Finish" Hand Polish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
2-Year Limited Warranty

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 13.4375 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 27 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.5625 in.
Inlet Location: Top Center
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.5625 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 14-18 Subaru Forester High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7209 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2014-2018 Subaru Forester
