CSF 2016+ 3.5L and 2.7L 05-15 4.0L and 2.7L Toyota Tacoma Radiator

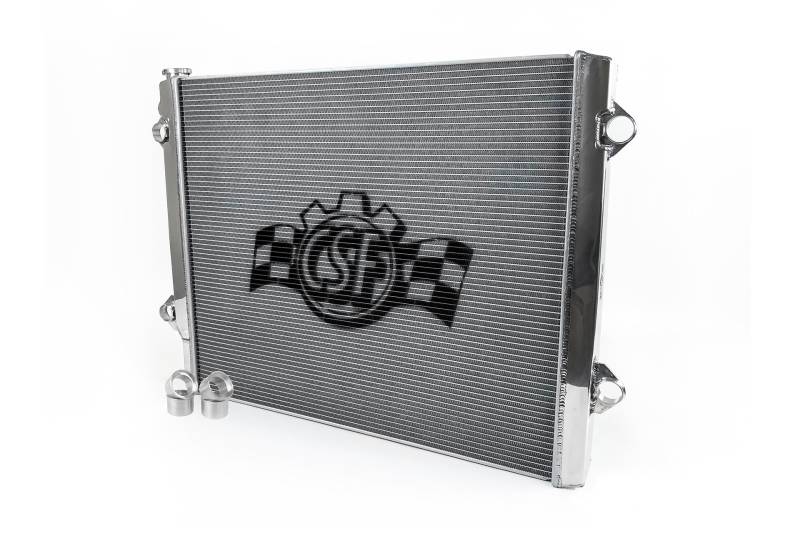

05+ Toyota Tacoma (3.5L / 4.0L / 2.7L) High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your 2nd/3rd Gen Tacoma. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your 2nd/3rd Gen Tacoma running at its best a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road a heavy-duty performance radiator is a must-have for off-roaders overlanders and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.; The CSF 2nd/3rd Gen Tacoma radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading towing or just casually driving trust the cooling experts at CSF for the best performing highest-quality and most reliable radiators.

2-Row 42mm Ultra-High Performance Radiator
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
CNC Machined Mounting Brackets
100% All Aluminum TIG Welded Construction
2 Year Limited Warranty
True "Drop-In" Fit with no Modifications Necessary
Smooth Satin Finish

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 21.625 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.375 in.
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.375 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 05+ Toyota Tacoma (3.5L / 4.0L / 2.7L) High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7092 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2005-2023 Toyota Tacoma
