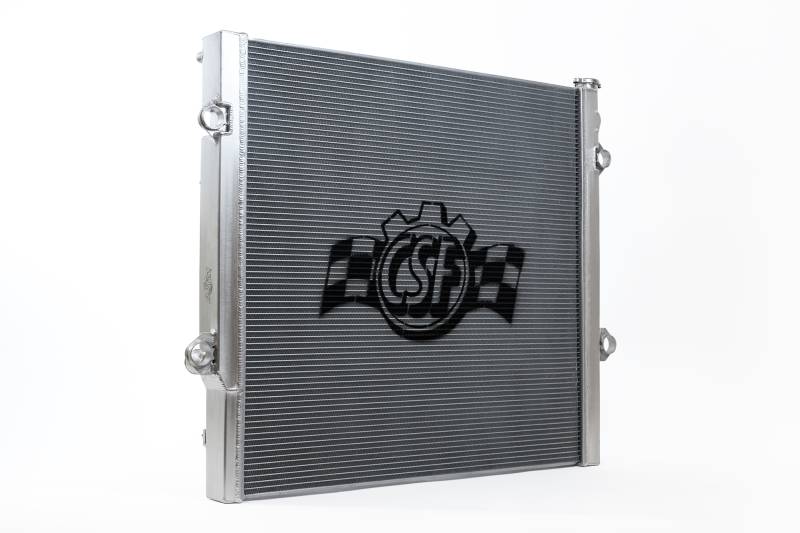

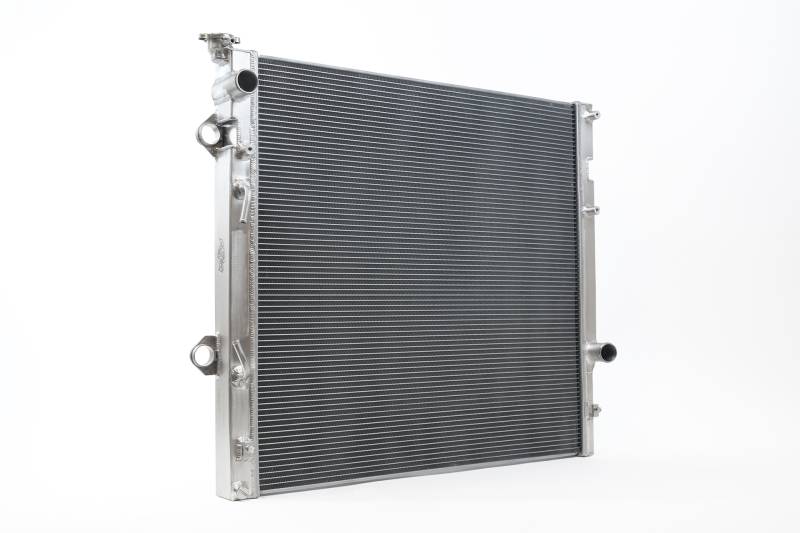

CSF 2010+ Lexus GX460 Heavy Duty All Aluminum Radiator

Lexus GX460 Heavy-Duty All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Lexus GX460. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

While the GX460's 1UR-FE V8 has been around for over a decade and proven to be an absolute tank of a motor the auxiliary components can't last forever. Although the OEM radiator is well suited for the task of keeping the engine cool in day to day driving the OEM radiator still has its weaknesses. Also given that many of these SUVs are over 10 years old with a fair bit of mileage on them it might be a good idea to replace that original radiator before it leaves you stranded in the wilderness. While some may opt for a simple OEM replacement CSF knows many enthusiasts are always looking to improve their vehicles.; The 2-Row 42mm aluminum core not only increases the fluid capacity of the radiator but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. End tanks are made from high grade aluminum and TIG welded to the core for extra strength. In contrast the OEM crimped onto plastic end tank design is much weaker and creates a weak point where failure is more likely. Because the CSF radiator is designed as a true plug-and-play drop-in fit application installation requires absolutely no modifications trimming or cutting. CSF even includes pre-cut double sided adhesive foam strips to help seal the fan shroud against the radiator. This improves airflow efficiency off the fan. Additionally the radiator features a built-in transmission oil cooler. The transmission cooler is a heavy-duty high-performance 5 plate design that connects to the OEM hoses. The upgraded built in cooler is great dealing with the added heat and stress from towing low gear crawling and vehicles equipped with oversized tires. While many understand the impacts of oversized tires it is always good to provide extra incite. By increasing the diameter of your tires you are reducing the effective gear ratio. This means the engine and transmission have to work harder to move the tires. Obviously this will end up generating excess heat but the CSF radiator is designed to handle it.

2-Row - 42mm Ultra-High-Performance Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Leak and Pressure Tested
2-Year Limited Warranty
CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets Fittings and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction
Built in Heavy-Duty High-Performance 5 Plate Transmission Oil Cooler in left side tank
Smooth Satin Finish
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.5625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 25.375 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.5 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: Yes
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.5 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: Lexus GX460 Heavy-Duty All-Aluminum Radiator

Associated Comments: The CSF #7214 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2010-2023 Lexus GX460
