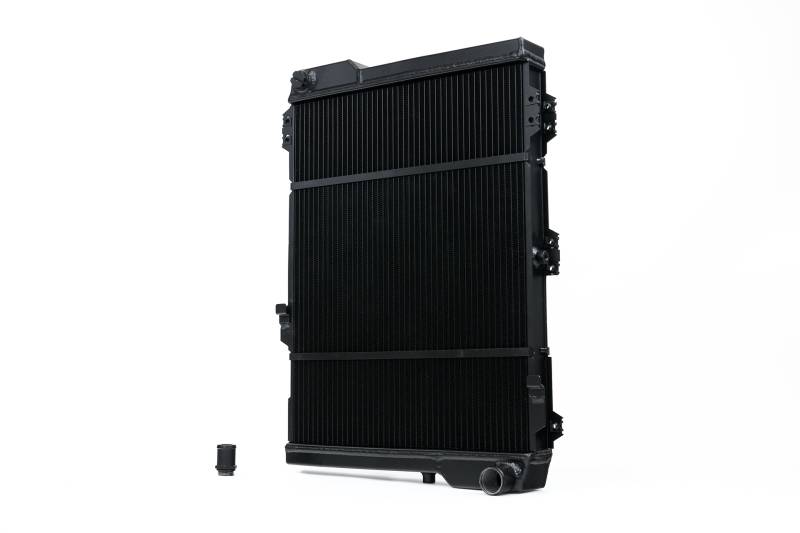

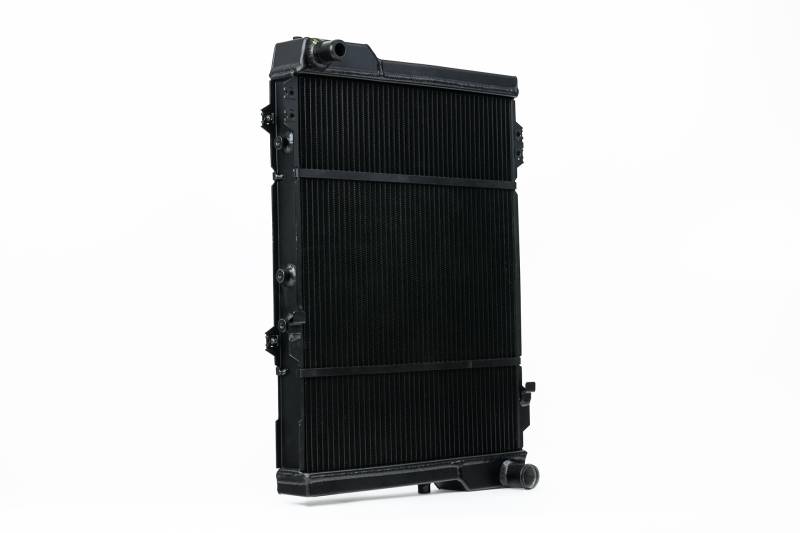

CSF Audi Classic and Small Chassis 5-Cylinder High-Performance All Aluminum Radiator

Classic & Small Chassis Audi 5-Cylinder High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Audi Quattro/B1/B2/B3/B4. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi Quattro/B1/B2/B3/B4 running at its best a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.; The CSF Audi Quattro/B1/B2/B3/B4 radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Trust the cooling experts at CSF for the best performing highest-quality and most reliable radiators.

2-Row 42mm Ultra-High-Performance Dual Pass Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Satin Black Finish for OEM+ Look
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Individually Leak and Pressure Tested
Modular design for use with or without Auxiliary Radiator
Multiple Fan Shroud Mounting Points for use with all Fans (incl. High Performance RS2 Model)
Multiple overflow pipe locations on top end tank for different model variations
Sensor ports are M22x1.5 (if your OEM Sensor is an early model M20x1.5 please be aware you will need an adapter)
2-Year Limited Warranty
Cooling Tubes with CSF's Exclusive B-Tube Technology
6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
100% All Aluminum TIG-Welded Construction

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 477mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 363.5mm
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 32mm
Inlet Location: Top Right
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 32mm
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: Classic & Small Chassis Audi 5-Cylinder High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7208 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

1980-1984 Audi 4000
1983-1985 Audi Quattro
1986-1987 Audi Coupe
1988-1991 Audi 90
1988-1991 Audi 90 Quattro
1988-1992 Audi 80 Quattro
1990-1991 Audi Coupe Quattro
1991-1992 Audi 80
