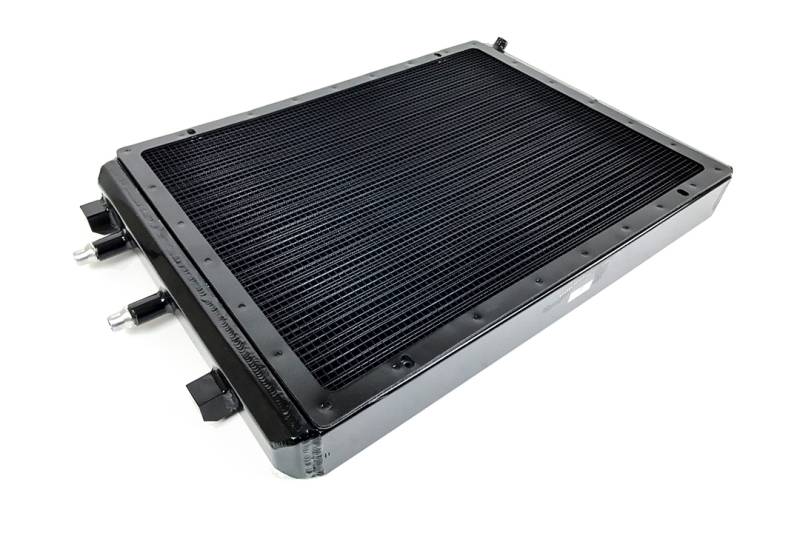

CSF 2014+ BMW M3/M4 (F8X) Front Mount Heat Exchanger w/Rock Guard - Black

BMW F8X M3/M4 Front Mount Heat Exchanger w/ rock guard - Black

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your F8X M3/M4 with a CSF Heat Exchangers.

The S55 power BMW F8X suffers heavily from heat soak. While the ideal solution is pairing the Front Mount Heat Exchanger with the Charge-Air-Cooler you can still see significant improvements with just the Heat Exchanger. The ability for the system to remove as much heat as possible is the bigger of the two weak points in the system. So if you are planning to upgrade your S55 cooling system and can only start with one the Heat Exchanger is the right choice to start with. The CSF Heat Exchanger is a true "Drop-in Fit" Requiring No Modifications to Install. It accepts All attaching OEM components including "Quick-Connect" hoses mounting brackets OEM X-Brace and all air ducting/shrouding. The CSF #8075V comes in a Satin Black Finish for OEM+ look. It is also available in a Polished Finish (CSF #8075).

2-row 42mm Core (Dual Core) Featuring CSF's Exclusive B-tube Technology
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Drop-in Fit
Replaces OEM Part Number: 17112284608
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
Dual-Pass Flow Structure Allows the Coolant to Flow Across the Core of the Radiator Two Times Before Exiting the Radiator for the Lowest Outlet Temperature Possible (OEM Style Design)
CNC Machined OEM-Style "Quick-Connect" Inlet/Outlet Connections
CNC Machined OEM-Style Mounting Brackets & Fittings for Superb Fit and Durability

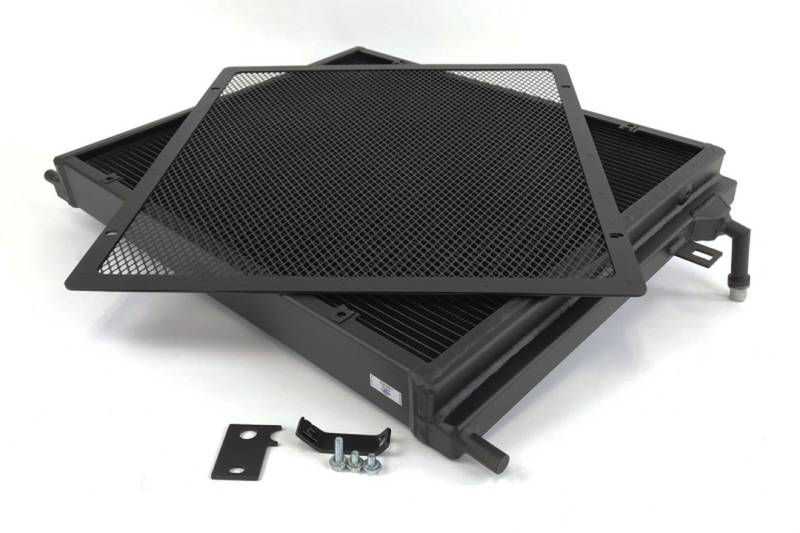

Includes Removable Aluminum Rock Guard
All-Aluminum Race Style Drain Plug
Semi-Gloss Black Finish

ADDITIONAL INFORMATION

ADD-ON: 8258
Core Material: Aluminum
Finish/Color: Black
Grade Type: Performance
Installation Type: Drop-In Fit Installation
Prop 65 Yes/No: No
Title: BMW F8X M3/M4 Front Mount Heat Exchanger w/ rock guard - Black

Associated Comments: The CSF #8075V Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2014-2020 BMW i8
2015-2018 BMW M3
2015-2020 BMW M4
2019-2021 BMW M2
