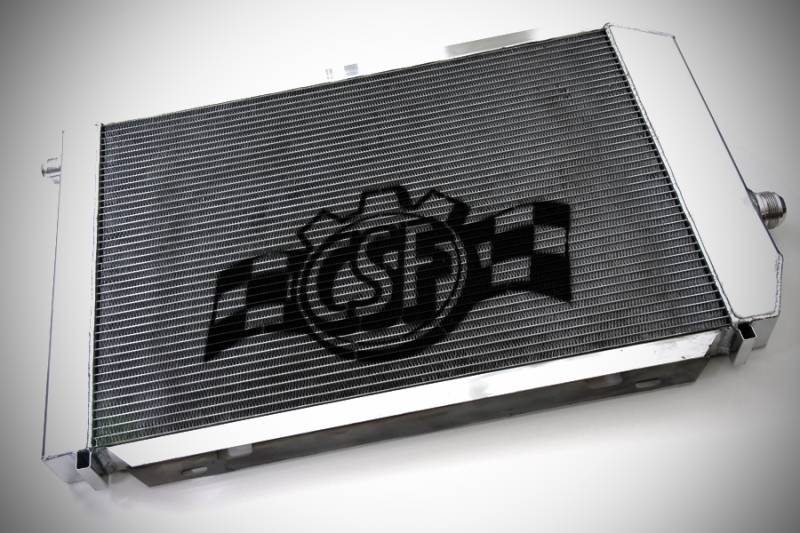

CSF Universal Triple Pass Dual Core Radiator w/AN Fittings

R-1 Triple-Pass "Ultimate Motorsports" Competition Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Vehicle. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

Track tested and proven in the most demanding driving conditions by some of the most sophisticated vehicles in professional motorsports. CSF's Triple-Pass R-1 Competition Radiator sets the bar for professional level cooling in any type of motorsport build. Lab tested in our state-of-the-art testing facilities featuring our industry best procedures including; wind tunnel vibration thermal cycle and burst pressure testing. Universal Fit Allows for Mounting in Multiple Different Configurations. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval-shaped "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.

CNC Machined Mounting Brackets
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
-AN Fittings
True "Drop-in" Fit With No Modifications Necessary for Installation
Smooth Satin Finish
Black Powder-Coated Core for Thermal Rejection
29.3"L x 19.1"H x 2.55"W (not including an fittings)
Universal Fit Allows for Mounting in Multiple Different Configurations
Perfect for V-Mount Turbocharged Setups

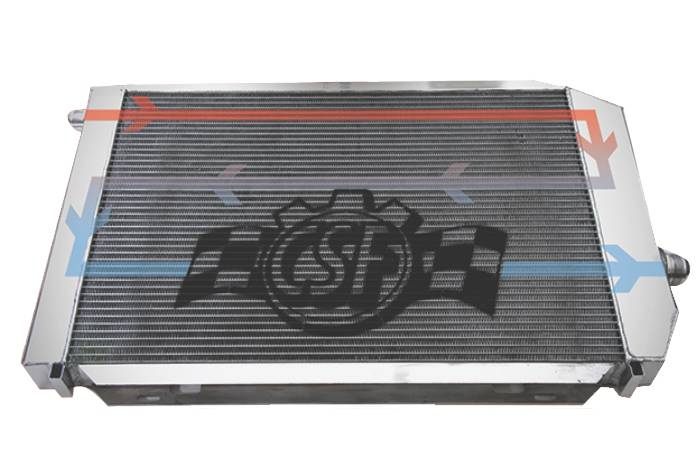

Triple-Pass Flow Configuration Allows Coolant to Flow Across the Core Three Times Before Exiting for Lowest Outlet Temperatures Possible
2-Row 52mm Ultra High-Performance Core
8mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
Track Tested and Proven by Formula Drift Champion Michael Essa
2-Year Limited Warranty
Individually Leak Tested
All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development Including Burst Pressure Thermal Cycle Vibration Testing and Salt Spray Testing
100% All Aluminum TIG-Welded Construction

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: AN-16
Coolant Hose Outlet Connection Type: AN-20
Core Height: 24.4375 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 52mm
Core Width: 16.8125 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: AN-16
Inlet Diameter: 1 in.
Inlet Location: Top Right
Installation Type: Universal Cooling Product
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: AN-20
Outlet Diameter: 1.25 in.
Outlet Location: Bottom Left
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: R-1 Triple-Pass -Ultimate Motorsports- Competition Radiator

Associated Comments: The CSF #8023 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
