CSF 2020+ Audi C8 RS6/RS7 High-Performance Intercooler System (OEM PN 4K0 145 805 P / 4K0 145 806 B)

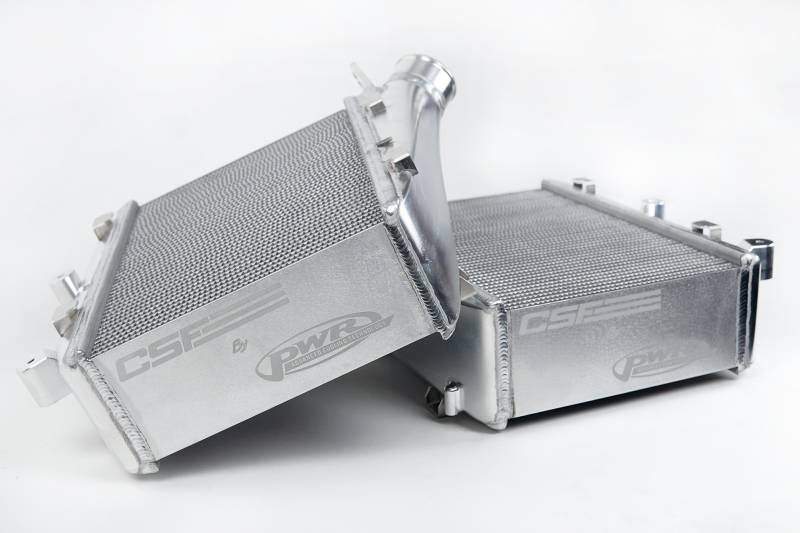

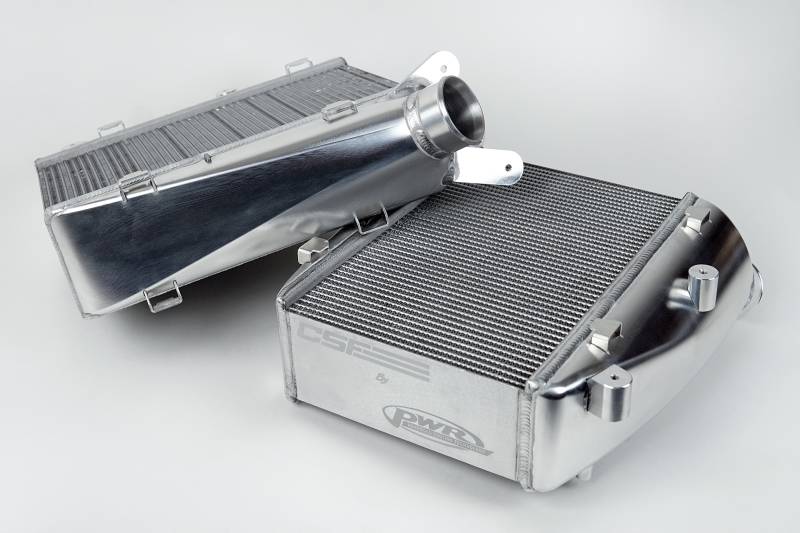

Audi C8 RS6/RS7 High-Performance Twin Intercooler Set - Raw Billet

The CSF by PWR C8 RS6/RS7 Twin Intercooler Set features Formula-1 grade cores which offer the greatest reduction in IATs and help eliminate heat soak. The Billet Aluminum construction offers the greatest strength and durability possible.

CSF teamed up with leading VAG specialists from Southern California Pacific German to bring this critical intercooler system to market unlocking the full potential and increasing power goals of the new C8 platform. With the OEM intercoolers the new C8 platform starts to exhibit heat soak and run-away increases in IATs which then triggers the ECU system to pull timing out of the engine and subsequently lowers performance.; The most important feature of the CSF by PWR RS6/RS7 Intercooler System is the Formula-1 grade intercooler core. CSF's strategic relationship with PWR has allowed the inclusion of this core which is unlike any other available in the performance aftermarket. Featuring two rows of rolled cooling tubes with inner fins these cores make for the most efficient intercoolers available. Because of this they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning. As with our other products produced through our PWR partnership our new RS6/RS7 Intercoolers feature 100% TIG-welded machined billet aluminum end tanks vs. the OEM crimped cast aluminum end tanks. This feature is not only aesthetically pleasing but is also stronger for longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from higher performance tunes as well as upgraded turbochargers.; With the enthusiasm that RS6/RS7 customers have for their vehicles the platform is already the coveted 1000hp mark and the CSF intercoolers are one of the critical components in reaching these power goals.; The CSF #8194 comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8194B).

Eliminates Heat Soak and Lowers Intake Air Temperatures (IATs) for Maximum Performance in High-Performance and Race Conditions
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Made in the USA at PWR North America
Replaces OEM Part Numbers: 4K0 145 805 P (Left) & 4K0 145 806 B (Right)
Stage 1 (Stock Tune) +20 WHP / +18 WTQ
Stage 2 (With High-Performance Tune) +10 WHP / +20 WTQ
Formula-1 Performance Grade Core by PWR (2-Row Core Featuring Rolled Tubes w/ Inner Fins)
CNC Machined Billet End Tanks
100% TIG Welded vs. OEM Style Gasket and Crimped End Tanks for Maximum Durability
OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications

ADDITIONAL INFORMATION

Color: Raw Billet Aluminum
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: No
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: Audi C8 RS6/RS7 High-Performance Twin Intercooler Set - Raw Billet
Type: Air-to-Air
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8194 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2021-2024 Audi RS6 Avant
2021-2024 Audi RS7 Sportback
