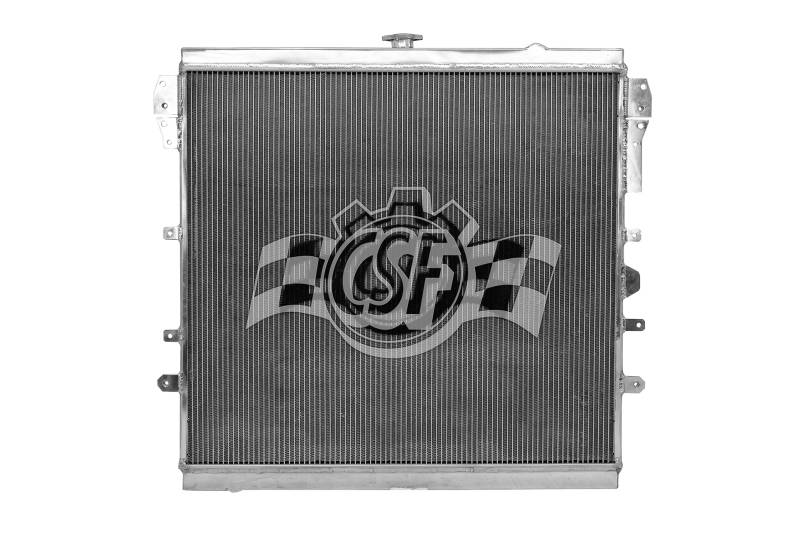

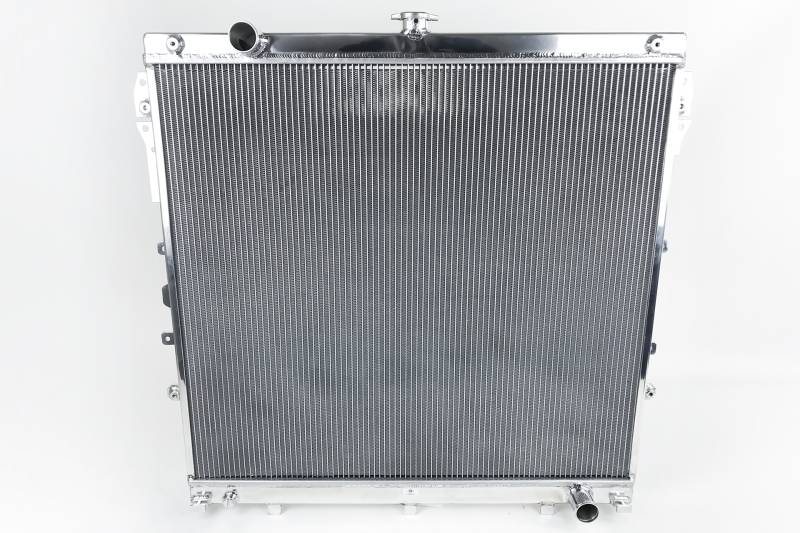

CSF 07-19 Toyota Tundra 5.7L Radiator

07-21 Toyota Tundra V8 (AT & MT) / 08-22 Sequoia All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Tundra/Sequoia. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Tundra/Sequoia running at its best a CSF Heavy-Duty/High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on and off road a heavy-duty performance radiator is a must-have for off-roaders overlanders and adventurers. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.; The CSF Tundra/Sequoia radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket. Whether you are off-roading towing or just casually driving trust the cooling experts at CSF for the best performing highest-quality and most reliable radiators.

1-Hour "Mirror Finish" Hand Polish
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Drop-in Fit
2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined "Quick-Connect" Inlet/Outlet Connections
CNC Machined Brackets and Fittings for Superb Fit and Durability
All-Aluminum Race Style Drain Plug

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.5625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 27.5 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On
Inlet Diameter: 1.5 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On
Outlet Diameter: 1.5 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: Yes
Tank Material: Aluminum
Thermostat Included: No
Title: 07-21 Toyota Tundra V8 (AT & MT) / 08-22 Sequoia All-Aluminum Radiator

Associated Comments: The CSF #7031 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2007-2021 Toyota Tundra
2008-2022 Toyota Sequoia
