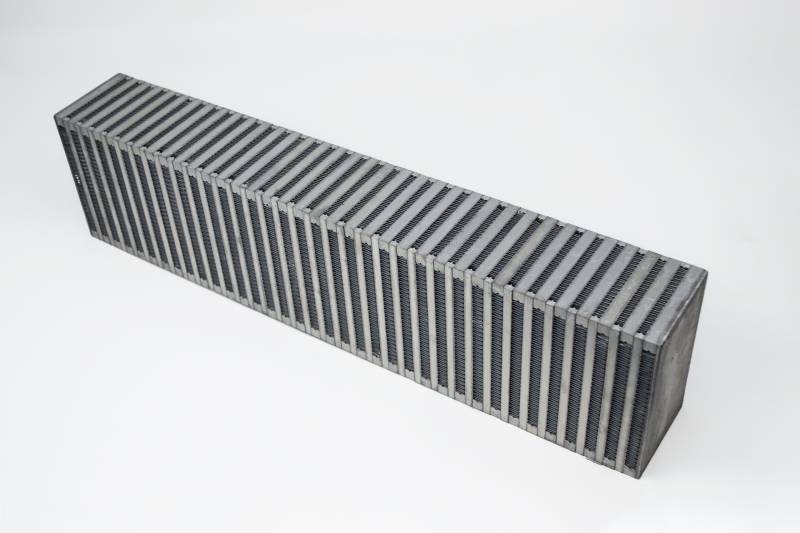

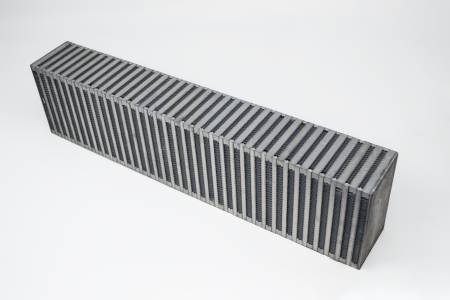

CSF High Performance Bar & Plate Intercooler Core (Vetical Flow) - 24in L x 6in H x 3.5in W

High-Performance Bar & Plate Intercooler Core 24x6x3.5 - Vertical Flow

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Vertical Flow Core is rated for 800 WHP and the perfect fit for your custom high-performance intercooler.

CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 24" x 6" x 3.5" Vertical Flow Core is rated for 800 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.

Heavy-Duty Bar & Plate Intercooler Cores
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
Dimensions: 24"x6"x3.5" (610mm x 150mm x 90mm)
HP Rating: 800
Vertical Flow
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
Strict Quality Control and Quality Testing Including Individual Pressure Testing

ADDITIONAL INFORMATION

Core Material: Aluminum
Core Row Quantity: 35
Grade Type: Performance
HP Rating: 800 WHP
Inlet Quantity: 1
Installation Type: Universal Cooling Product
Intercooler Flow Direction: Vertical
Intercooler Type: Air-to-Air
Length: 24 in.
Mounting Hardware Included: No
Outlet Quantity: 1
Prop 65 Yes/No: No
Tank Material: No Tanks Included
Thickness: 3.5 in.
Title: High-Performance Bar & Plate Intercooler Core 24x6x3.5 - Vertical Flow
Type: Air-to-Air
Width: 6 in.

Associated Comments: The CSF #8053 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
