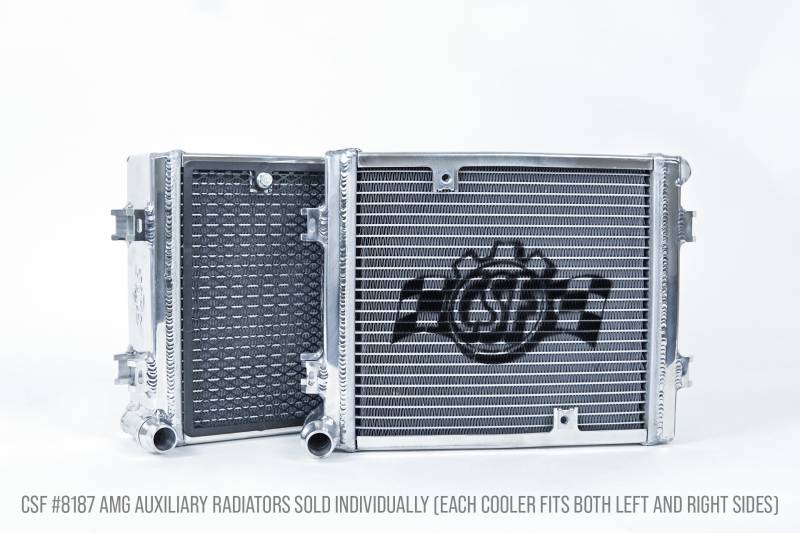

CSF 2015+ Mercedes Benz C63 AMG (W205) Auxiliary Radiator- Some Applications Require Qty 2

Mercedes AMG GT / GT 53 / GT 63 S / W205 C63 / W166 GLE63 Auxiliary Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your AMG. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

The High-Performance All-Aluminum Auxiliary Radiators work in conjunction with the rest of the cooling system to reduce temperatures throughout. This is critical as the Auxiliary Radiators not only help keep engine water temperatures lower but also are utilized as the heat exchange medium in the air-to-water charge-air coolers for the turbocharger system to reduce intake air temperatures (IATs). Overall the Auxiliary Radiators larger capacity prolongs the heat soak threshold and assists in keeping temperatures in optimal ranges. The included detachable rock guard offers protection against the build-up of debris as well as possible core punctures - unlike the OEM auxiliary radiators which have little protection against the elements. CSF recommends purchasing two Auxiliary Radiators to replace both left and right OEM units (for vehicles with two from the factory). For maximum cooling performance we advise installing in conjunction with the Front Mount Heat Exchanger (CSF #8088).

2-Row High-Performance Core Featuring CSF's B-Tube Technology
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Individually Leak and Pressure Tested
High-Performance Upgrade Suitable for Professional Racing Street Performance or OEM Replacement - 2 Year Limited Warranty
Core Features Ultra Efficient 6.5mm Tall Fins with a Multi-Louvered Design for Maximum Surface Area Contact
Approx. Double the Capacity of OEM (100% More Capacity - OEM 26mm Core vs. CSF 42mm Core)
100% All-Aluminum TIG-Welded Construction
CNC Machined Mounting Brackets and OEM Style "Quick Connect" Inlet/Outlet

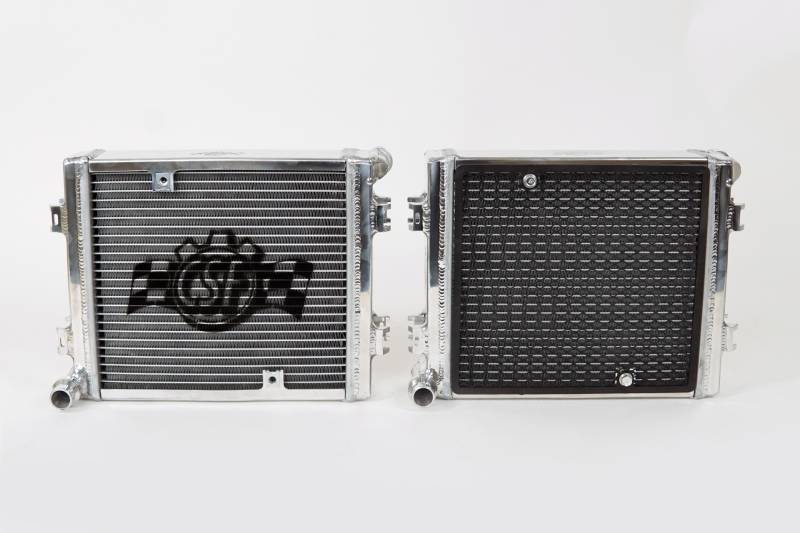

1 Hour "Mirror Finish" Hand Polish & Includes Detachable Rock Guard
Multi-Fit - Fits Both Left & Right Side (For Vehicles With One or Two Auxiliary Radiators)
True "Drop-in Fit" Requires No Modifications to Install

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 245mm
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 42mm
Core Width: 242mm
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Polished
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 16mm
Inlet Location: Top
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 16mm
Outlet Location: Bottom
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: Mercedes AMG GT / GT 53 / GT 63 S / W205 C63 / W166 GLE63 Auxiliary Radiator

Associated Comments: The CSF #8187 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2015-2021 Mercedes-Benz C63 AMG S
2016-2017 Mercedes-Benz AMG GT S
2016-2019 Mercedes-Benz GLE63 AMG
2016-2019 Mercedes-Benz GLE63 AMG S
2016-2021 Mercedes-Benz C63 AMG
2017-2017 Mercedes-Benz AMG GT
2017-2019 Mercedes-Benz GLS63 AMG
2020-2022 Mercedes-Benz GLE580
2020-2022 Mercedes-Benz GLS580
