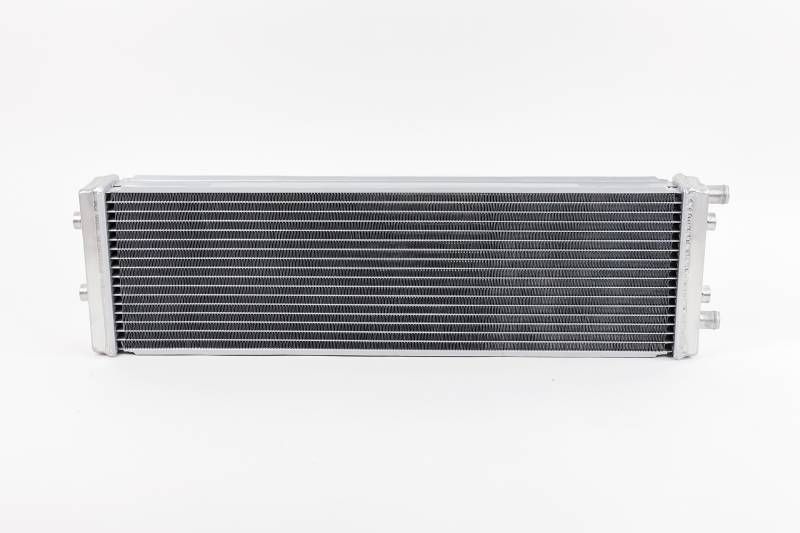

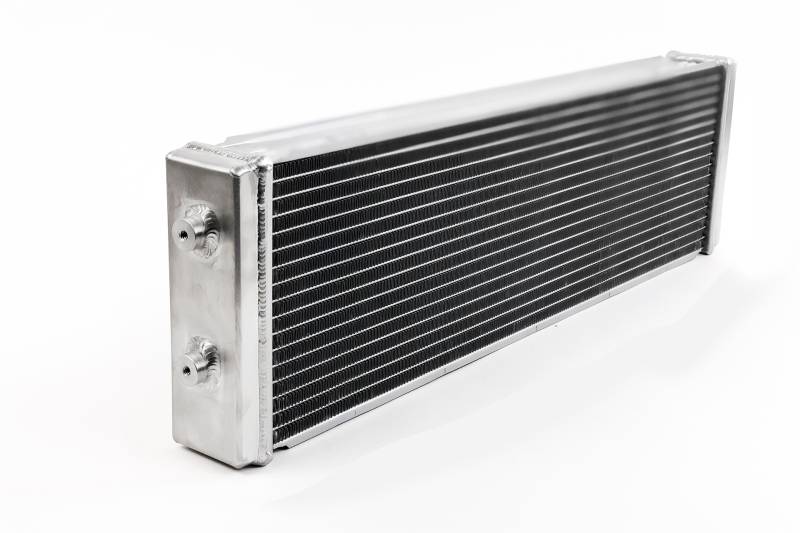

CSF Dual-Pass Universal Heat Exchanger (Cross-Flow)

Dual-Pass Cross Flow Heat Exchanger with 3/4" slip-on connections

Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your Vehicle with a CSF Heat Exchangers.

The ultimate universal dual-pass cross flow heat exchanger is the ideal option for you custom project. This cooler can be used as an Air-to-Water Intercooler Heat Exchanger Small Radiator or Auxiliary Radiator. The dual 3/4 inch (19mm) slip on connections allow for easy fluid line connections. Can be mounted in any orientation.

100% All Aluminum TIG-Welded Construction
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
2-Row 42mm Ultra High-Performance Core
6.5mm Tall Multi-Louvered Fins with CSF's Exclusive B-Tube Technology
3/4" (19mm) slip-on connections
CNC Machined Mounting Brackets
Smooth Satin Finish
2-Year Limited Warranty
Individually Leak Tested
All CSF High-Performance Radiators Undergo a Rigorous Testing Process During Development Including Burst Pressure Thermal Cycle Vibration Testing and Salt Spray Testing

ADDITIONAL INFORMATION

Core Material: Aluminum
Finish/Color: Satin
Grade Type: Performance
Installation Type: Universal Cooling Product
Prop 65 Yes/No: No
Title: Dual-Pass Cross Flow Heat Exchanger with 3/4in slip-on connections

Associated Comments: The CSF #8030 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
