CSF Dual Fluid Bar & Plate HD Oil Cooler w/9in SPAL Fan (1/3 & 2/3 Partition) - 13.8in L x 10in H

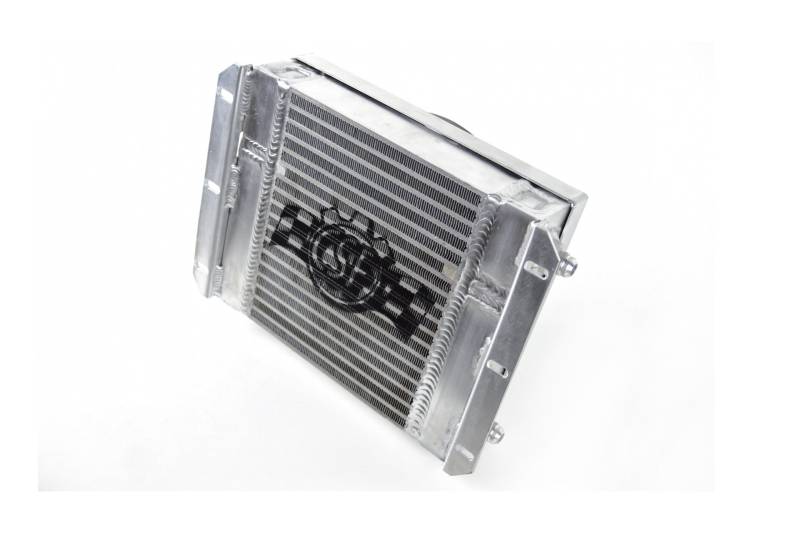

13.8in x 10in Dual Fluid Bar & Plate HD Oil Cooler w/9in SPAL Fan

CSF offers the best and most advanced Oil Coolers on the market. So when it comes to keeping your engine oil temps down as you push your Vehicle hard on the street or track, a CSF Oil Cooler is the obvious choice.

The revolutionary dual-fluid oil cooler from CSF is the most versatile oil cooler on the market. Its universal-fit design makes it an ideal choice for all types of racing drifting as well as marine sand sports applications and everything in-between.; The all-aluminum design was made to withstand even the most extreme conditions - With extruded aluminum end tanks TIG welds a heavy-duty bar and plate core and pressure testing up to 120psi. The core features 17 rows of cooling split into two sections of 5 and 12 rows allowing for cooling of two different fluids in one compact design. Virtually any type of oil can be used - including engine oil power steering fluid transmission oil and gearbox fluid. The oil cooler includes a SPAL fan and shroud with isolator mounts (for high vibration) - but this can be removed for a more compact fit or when not needed. -10 AN fittings are built into the end tanks making it easy to install for aftermarket and race applications.

9.7" Tall x 13.8" Wide (With Brackets) 14" x 5.15" Thick (With Fan) (5.65" Thick With Bracket Overhang)
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
17 Rows of Cooling Split-up Into 2 Sections of 5 Rows (30%) and 12 Rows (70%)

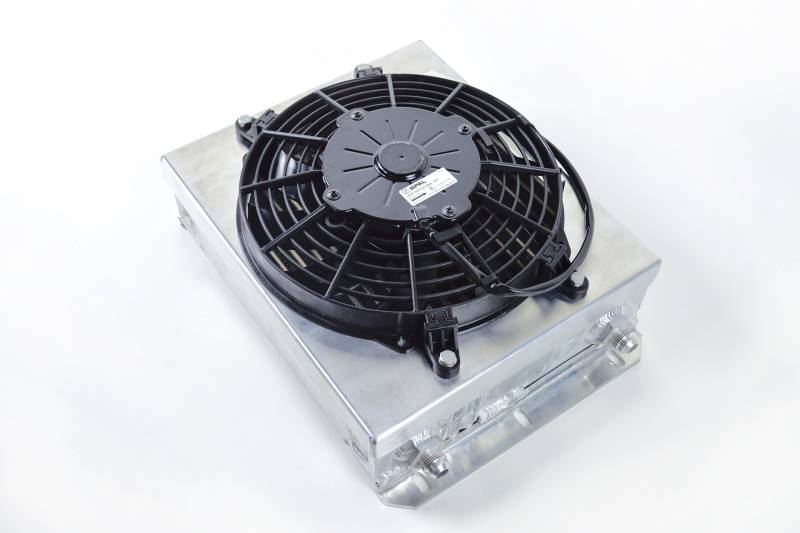

Includes Removable 9" SPAL Fan & Shroud
Built-in AN -10 Male Fittings (Plug and Play)
Pressure Tested at 120psi
Extruded Aluminum Endtanks
Heavy-Duty Bar and Plate Core Design
Can Be Used With Any Type of Oil (i.e. Engine Oil Power Steering Fluid Transmission Oil Gearbox Fluid)

ADDITIONAL INFORMATION

Cable Included: No
Color: Satin
Core Charge Applicable: No
Core Material: Aluminum
Core Row Quantity: 1
Core Tube: No
Finish: Brushed Aluminum
Grade Type: Performance
Inlet Fitting Type: Male
Installation Type: Universal Cooling Product
Mounting Hardware Included: No
Outlet Fitting Type: Male
Prop 65 Yes/No: No
Strap Included: No
Title: 13.8in x 10in Dual Fluid Bar & Plate HD Oil Cooler w/9in SPAL Fan
Tube Included: No

Associated Comments: The CSF #8026 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
