CSF 2015+ Volkswagen Golf/GTI (VAG MQB) Triple-Pass Radiator

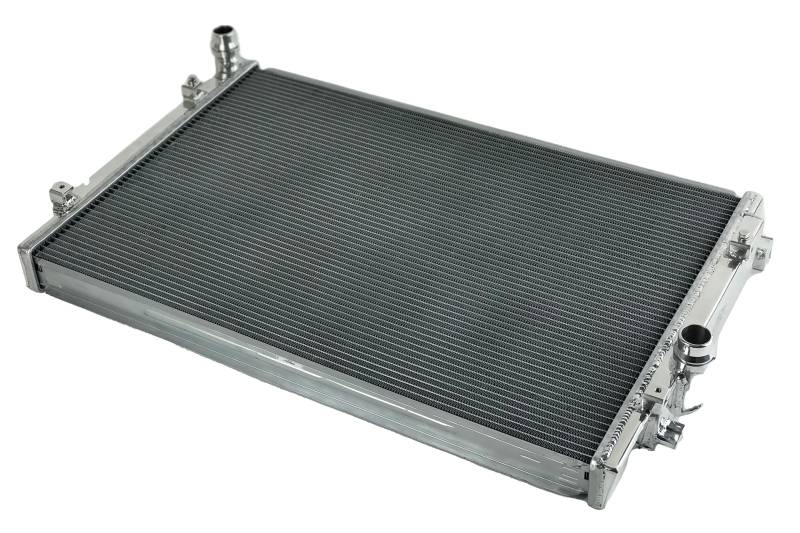

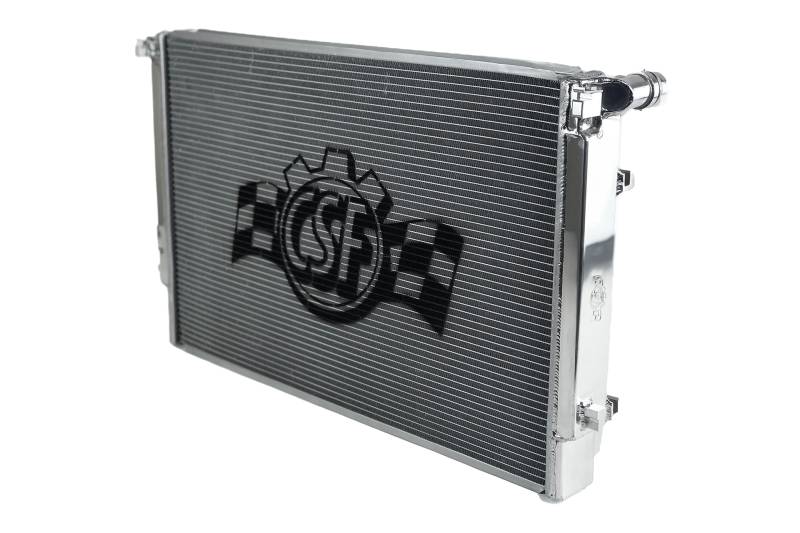

Audi / VW MQB Triple-pass High-Performance All-Aluminum Radiator

CSF manufactures the most advanced and efficient radiator in the industry for your Audi/VW. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Audi/VW running at its best a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.; The CSF Audi/VW radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
CNC Machined "Quick-Connect" Inlet/Outlet Connections
CNC Machined Brackets and Fittings for Superb Fit and Durability
All-Aluminum Race Style Drain Plug
Smooth Satin Finish
Drop-in Fit

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: OE Type Connection
Coolant Hose Outlet Connection Type: OE Type Connection
Core Height: 25.5625 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 1.625 in.
Core Width: 17.3125 in.
Down Flow Or Cross Flow Type: Cross Flow
Finish/Color: Satin
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Quick Connect
Inlet Diameter: 1.25 in.
Inlet Location: Top Left
Installation Type: Drop-In Fit Installation
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Quick Connect
Outlet Diameter: 1.25 in.
Outlet Location: Bottom Right
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: Audi / VW MQB Triple-pass High-Performance All-Aluminum Radiator

Associated Comments: The CSF #7084 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2015-2018 Volkswagen Golf
2015-2019 Volkswagen Golf R
2015-2019 Volkswagen Golf SportWagen
2015-2020 Audi A3 Quattro
2015-2020 Audi S3
2015-2021 Volkswagen GTI
2016-2016 Audi TT
2016-2021 Audi TT Quattro
2016-2021 Audi TTS Quattro
2017-2019 Volkswagen Golf Alltrack
2017-2020 Audi A3
2018-2020 Volkswagen Tiguan
2019-2021 Volkswagen Arteon
2019-2021 Volkswagen Jetta
2019-2022 Audi Q3
