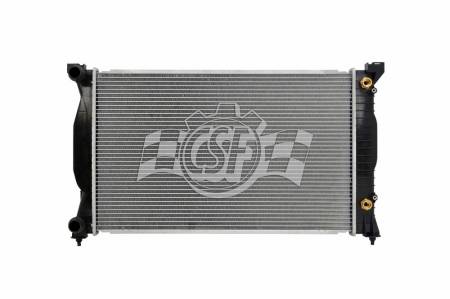

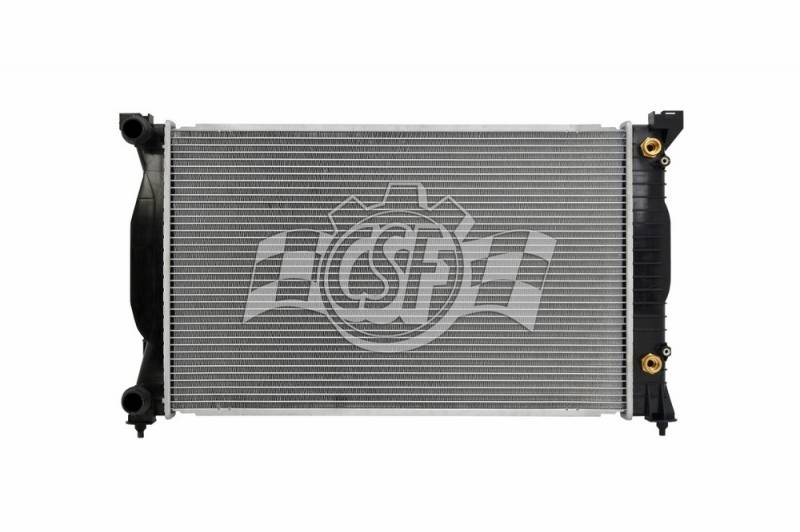

CSF 02-08 Audi A4 1.8L OEM Plastic Radiator

1 Row Plastic Tank Aluminum Core

Radiator
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

Bottom Hose Fitting (in): 1 1/4 Left

Box Height (in): 6 5/8
Box Length (in): 32

Box Weight (lbs): 10
Box Width (in): 20

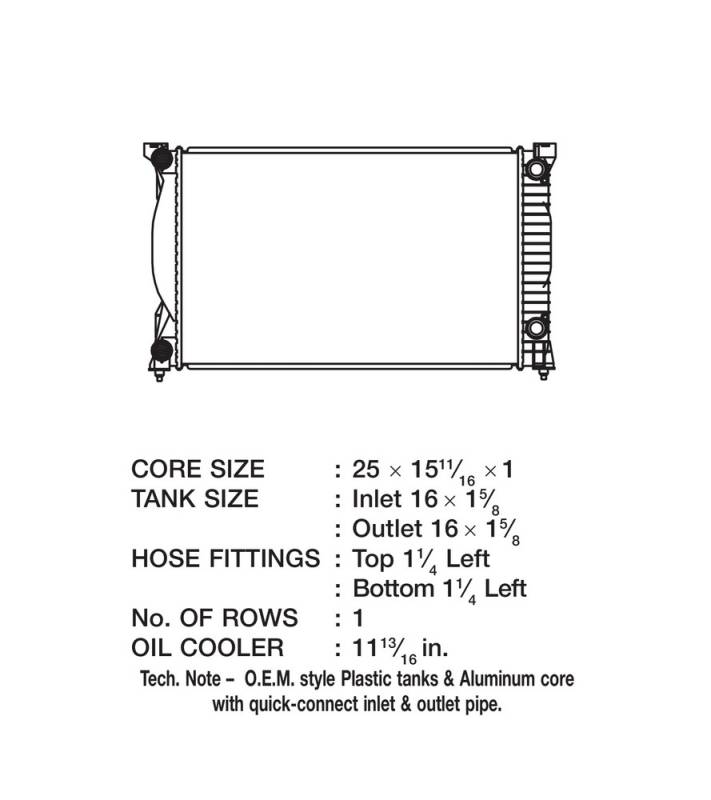

Core Length (in): 24 15/16
Core Material: Aluminum

Core Thickness (in): 7/8
Core Width (in): 15 1/4

Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No

Inlet Length (in): 16 1/16
Inlet Width (in): 1 9/16

No. Of Rows: 1
Oil Cooler (in): 11 13/16 (high-efficiency Plate Type)

Outlet Length (in): 16 1/16
Outlet Width (in): 1 9/16

Radiator Cap Supplied: No
Tank Material: Plastic

Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe.
Top Hose Fitting (in): 1 1/4 Left
