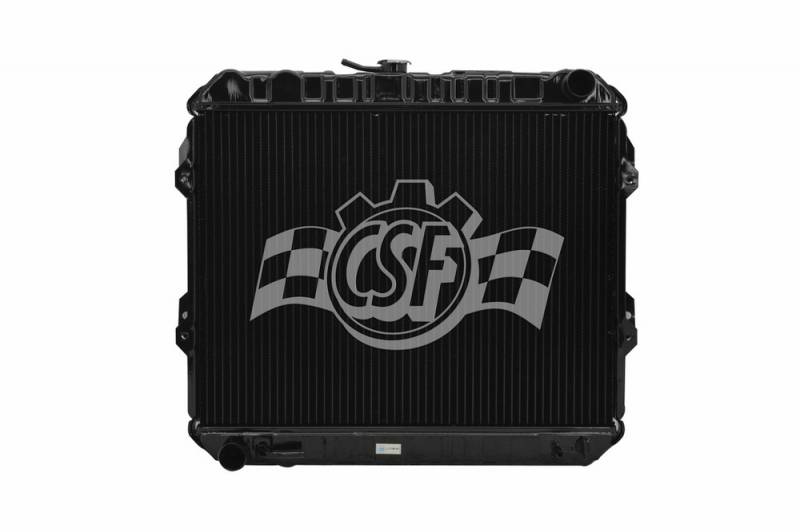

CSF 86-95 Toyota Pickup 2.4L OEM Plastic Radiator

2 Row All Metal

Radiator
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

Bottom Hose Fitting (in): 1 3/8 Left

Box Height (in): 5 1/16
Box Length (in): 22 9/16

Box Weight (lbs): 13
Box Width (in): 25 7/8

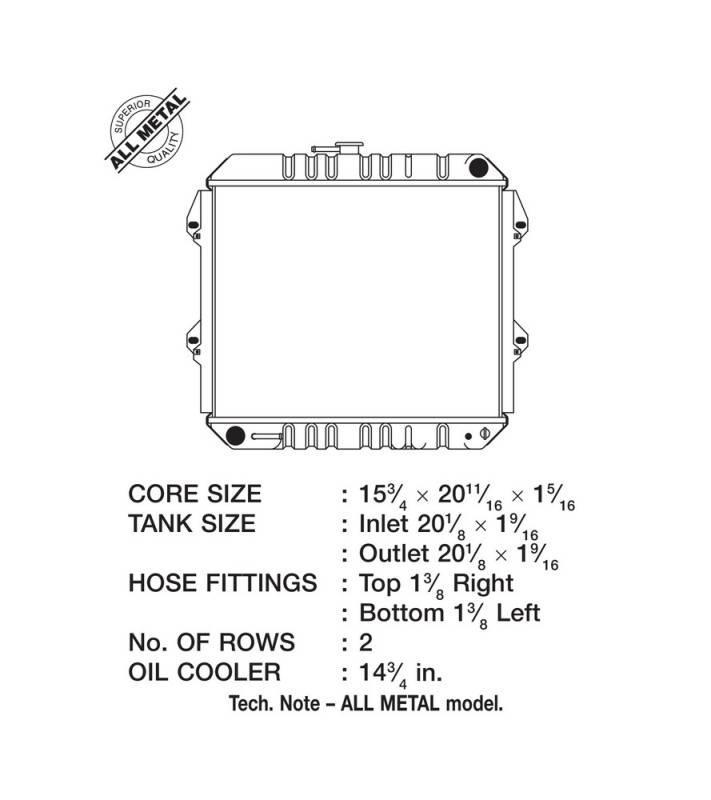

Core Length (in): 15 3/4
Core Material: Copper

Core Thickness (in): 1 1/8
Core Width (in): 20 13/16

Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4502

Hazardous Material: No
Inlet Length (in): 20 7/8

Inlet Width (in): 1 9/16
No. Of Rows: 2

Oil Cooler (in): 14 3/4 (high-effeciency Concentric Type)
Outlet Length (in): 20 7/8

Outlet Width (in): 1 9/16
Radiator Cap Supplied: No

Tank Material: Brass
Tech Note: ALL METAL model.

Top Hose Fitting (in): 1 3/8 Right
