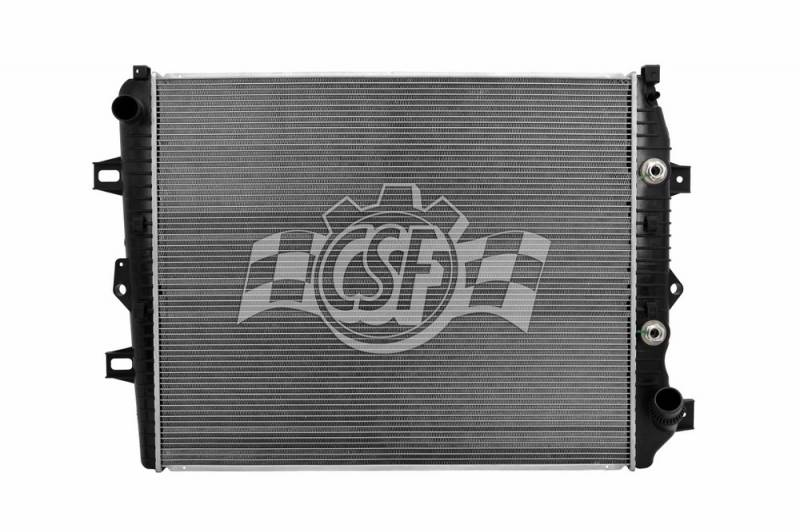

CSF 11-16 GMC Sierra 2500HD 6.6L OEM Plastic Radiator

2 Row Plastic Tank Aluminum Core

Radiator
CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

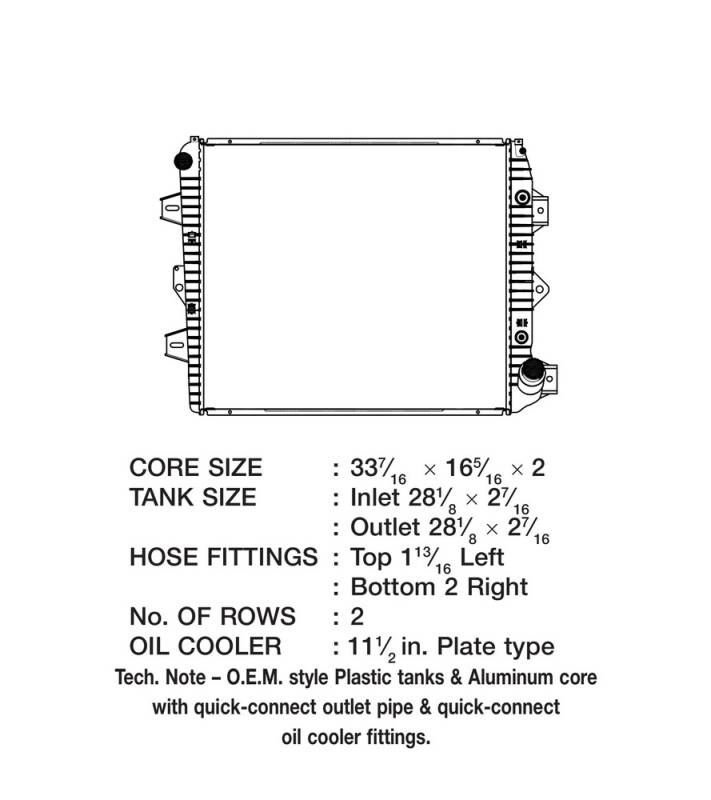

Bottom Hose Fitting (in): 2 Right

Box Height (in): 7 7/16
Box Length (in): 45 13/16

Box Weight (lbs): 29
Box Width (in): 31 5/8

Core Length (in): 33 7/16
Core Material: Aluminum

Core Thickness (in): 2 1/16
Core Width (in): 27 1/2

Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No

Inlet Length (in): 28 1/8
Inlet Width (in): 2 7/16

No. Of Rows: 2
Oil Cooler (in): 11 1/2 (high-efficiency Plate Type)

Outlet Length (in): 28 1/8
Outlet Width (in): 2 7/16

Radiator Cap Supplied: No
Tank Material: Plastic

Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings.
Top Hose Fitting (in): 1 13/16 Left
