CSF Universal Drag Race / Tuck Radiator w/9in Spal Fan - 10.5in H x 10in L x 3.6in W - Black

The KING Cooler - Ultimate Drag Race Radiator w/ SPAL Fan & Mounting Kit - Black

CSF manufactures the most advanced and efficient radiator in the industry for your Vehicle. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.

After more than 9 months of R&D and input from some of the best import drag race builders in N. America CSF has brought to the sport compact market the most advanced drag race cooling system ever developed. Introducing the KING Cooler. For the longest time buying a drag-race radiator was a tasking process. End users had to custom order the unit based on their connection and mounting specifications. Typically this process would take 2-4 weeks and be rather expensive. CSF has eliminated this hassle by making sure that these units are in stock in both of CSF's coastal warehouses and on the shelves of distributors and supporting dealers around the world. Universal Fit Allows for Mounting in Multiple Different Configurations. The Triple-Pass Flow Structure allows the coolant to flow across the core of the radiator three times before exiting for lowest outlet temperatures possible. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval-shaped "O" type radiator tube CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application and tested for maximum heat rejection efficiency in our wind-tunnel lab.

3.5-inch thick 2-row core with CSF's exclusive B-tube technology
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
Threaded Bung size and thread pitch: 1 5/16" x 12G
Drain Plug Bung size and thread pitch: M12 x 1.5p

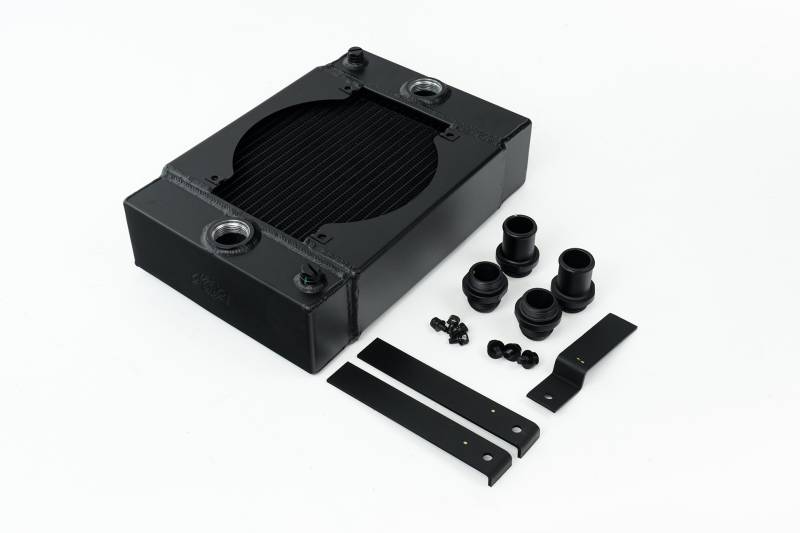

Universal mounting brackets included

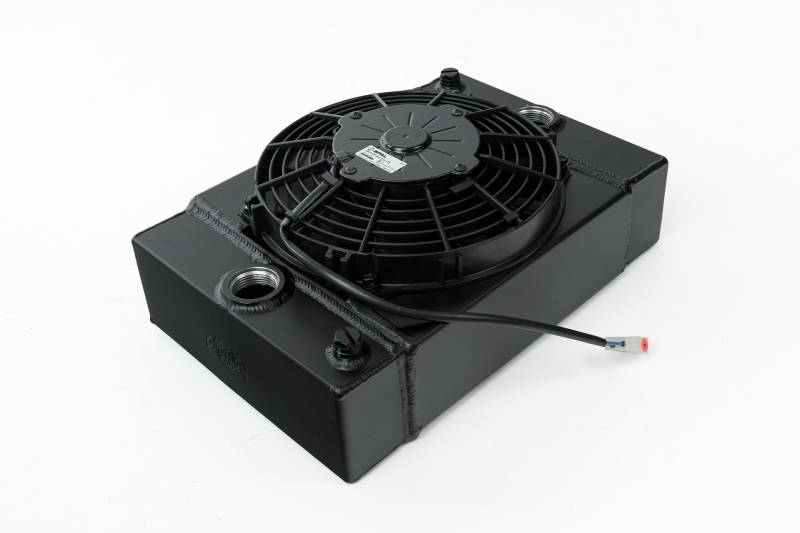

Includes 9-inch SPAL fan
Black Finish for High-End Stealth Look
Overall dimensions: 14.5H ? 10.0L ? 3.6W (5.65W with a fan installed)

ADDITIONAL INFORMATION

Coolant Hose Inlet Connection Type: Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
Coolant Hose Outlet Connection Type: Threaded bungs accepting 1.25-inch slip-on fittings and -16 inlet/outlet connections (Kit included)
Core Height: 9.375 in.
Core Material: Aluminum
Core Row Quantity: 2
Core Thickness: 2.6875 in.
Core Width: 9 in.
Down Flow Or Cross Flow Type: Down Flow
Finish/Color: Black
Frame Included: No
Grade Type: Performance
Inlet Connector Type: Slip On or AN Fitting
Inlet Diameter: 1.25 in.
Inlet Location: Top Center
Installation Type: Universal Cooling Product
Internal Engine Oil Cooler: No
Internal Transmission Oil Cooler: No
Mounting Hardware Included: No
Mounting Type: Mounts with OE Hardware
Outlet Connector Type: Slip On or AN Fitting
Outlet Diameter: 1.25 in.
Outlet Location: Bottom Center
Prop 65 Yes/No: No
Radiator Cap Included: No
Tank Material: Aluminum
Thermostat Included: No
Title: The KING Cooler - Ultimate Drag Race Radiator w/ SPAL Fan & Mounting Kit - Black

Associated Comments: The CSF #7065B is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

None
