CSF Toyota A90/A91 Supra/ BMW G-Series B58 Charge-Air Cooler Manifold- Machined Billet Aluminum

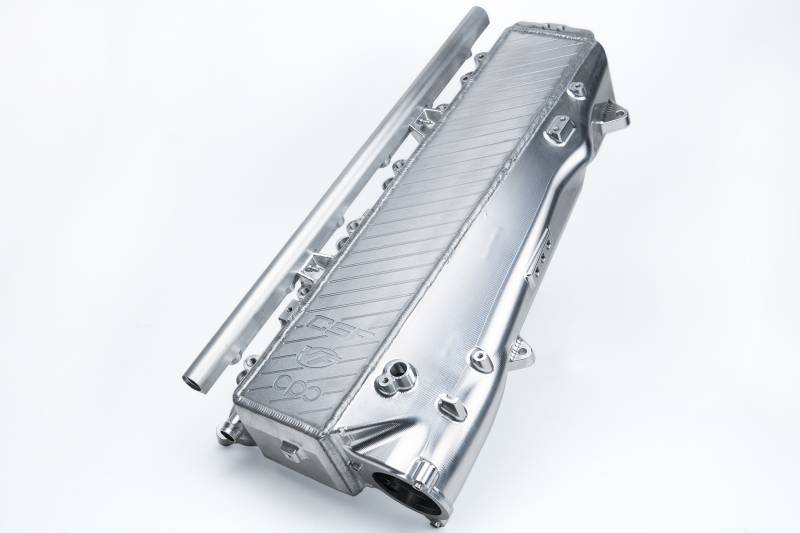

A90 Supra / BMW B58 Charge-Air Cooler Manifold - Raw Billet

With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Super Manifold allows B58 owners to maximize performance.

With over 1500 hours of design development machining and testing CSF along with partners VF Engineering (USA) and Custom Plenum Creations (Australia) has now brought a state-of-the-art CNC machined high-performance Charge-Air Cooler Manifold to the B58 platform (Mk5 Supra and BMW models). This product solves what has been commonly known as a weak link of an otherwise impressive new engine platform. With the larger and more efficient water-to-air intercooler performance lower pressure drop across the system included fuel rail kit for top feed port injection and several other industry-leading features the CSF Super Manifold will allow B58 owners to maximize the performance of their vehicles and push the limits further than what has been previously possible with this new platform.; The newer 2nd gen B58 engine found in the Mk5 Supra has already been proven to be an incredible platform for performance enthusiasts - taking the performance and motorsports industry by storm in just a couple of years since its release. Customers are now pushing through the 1000whp mark on their B58 powered vehicles with the CSF manifold. The OEM water-cooled charge air cooler intake manifold for the B58 engine is adequate in cars with little or no modifications but starts to really show its weakness in cars with bolt-on mods turbo upgrades increased fueling (such as port injection) and performance tuning. The OEM intercooler system has also been known to suffer from heat soak in demanding racing conditions such as time attack endurance racing drag racing drifting and even spirited street driving. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs) and can cause "limp mode" once temperatures reach a certain threshold as the vehicle's ECU attempts to protect the engine.; The CSF #8200 comes in a raw billet aluminum finish. Also available in Thermal Black Heat Dispersion (CSF #8200B) & in custom colors/finishes (CSF #8200C).

Utilizes a High Performance Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
CSF The Cooling Experts have been serving the US aftermarket for almost 4 decades. With over 30 million units sold CSF is your exclusive source for Radiators Condensers Intercoolers Inverter Coolers Racing Radiators and Pressure Caps.
CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
Counter Balanced Design for Optimized Airflow
Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters
Included Optional Fuel Rail for Top Feed Port Injection
Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Plug-and-Play design Requiring No Modifications to Install

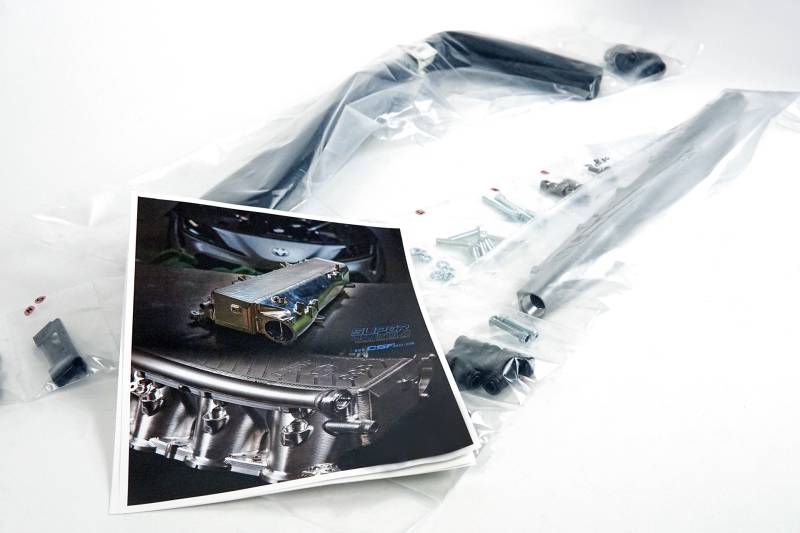

Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
Comes Finished in Raw Billet Aluminum (available in custom finishes) - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia

ADDITIONAL INFORMATION

ADD-ON: 7226
Color: Raw Billet Aluminum
Core Color: Raw Aluminum
Core Material: Aluminum
Core Row Quantity: 2
Grade Type: Performance
Inlet Fitting Gender: Male
Inlet Tank Material: Billet Aluminum
Installation Type: Drop-In Fit Installation
Mounting Hardware Included: Yes
Outlet Fitting Gender: Male
Prop 65 Yes/No: No
Title: A90 Supra / BMW B58 Charge-Air Cooler Manifold - Raw Billet
Type: Air-to-Water
Universal Or Specific Fit: Specific

Associated Comments: The CSF #8200 Cooling product is designed to be a "Drop-In Fit" applications. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

FITMENT NOTES

2018-2022 BMW 740i
2018-2022 BMW 740i xDrive
2019-2024 BMW X5
2019-2024 BMW X7
2020-2022 BMW 745e
2020-2022 BMW 745e xDrive
2020-2023 BMW 540i
2020-2023 BMW 540i xDrive
2020-2024 BMW 840i
2020-2024 BMW 840i Gran Coupe
2020-2024 BMW 840i xDrive
2020-2024 BMW 840i xDrive Gran Coupe
2020-2024 BMW M340i
2020-2024 BMW M340i xDrive
2020-2024 BMW X3
2020-2024 BMW X4
2020-2024 BMW X6
2020-2024 BMW Z4
2020-2024 Toyota GR Supra
2021-2024 BMW M440i
2021-2024 BMW M440i xDrive
2022-2024 BMW M240i xDrive
2022-2024 BMW M440i xDrive Gran Coupe
2023-2024 BMW M240i
2024-2024 BMW M440i Gran Coupe
