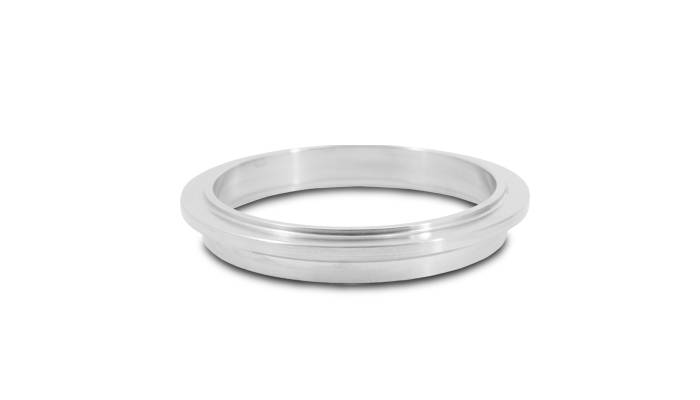

Vibrant Performance Turbo Discharge Flange for Tial and Garrett Housings on GT28/GT30/GT35 V-Band Style T304 SS

Tial Turbine Housing Outlet Flange - Garrett GT30/GT35/GTX30/GTX35 Kit 740902-0019 thru -0036

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Precision laser cut and CNC machined to ensure a perfect fit to your turbo components

ADDITIONAL INFORMATION

Add-On: N/A
Apex Width: 3.57 MM
Centering Ring Male Diameter: 77.7 MM
Centering Ring Male Diameter Height: 1.78 MM
Flange O.D.: 90.18 MM
Material: 304 Stainless Steel
Port I.D.: 72.9 MM
Product Group: Turbine Outlet Flanges
Prop 65 Yes/No: No
Thickness: 12.9 MM
Title: Vibrant Performance - 1415 - Tial Turbine Housing Outlet Flange - Garrett
Tube Recess Depth: 2.5 MM
Tube Recess I.D.: 3 IN

FITMENT NOTES

Universal
