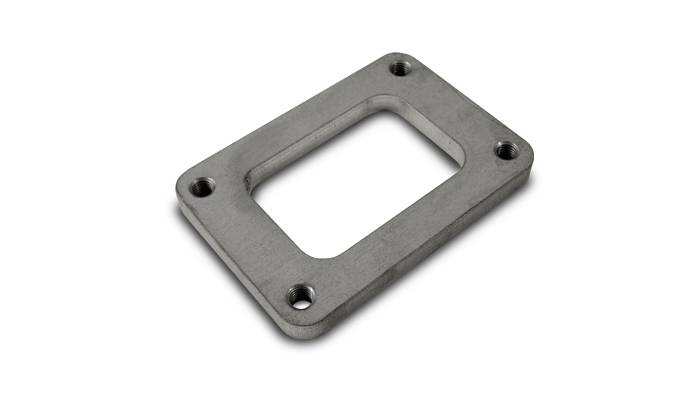

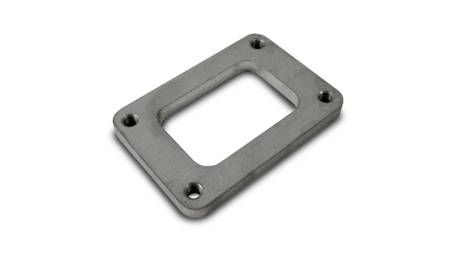

Vibrant Performance T06 Turbo Inlet Flange Mild Steel 1/2in Thick

T6 Turbo Inlet Flange

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Precision laser cut and CNC machined to ensure a perfect fit to your turbo components

ADDITIONAL INFORMATION

Add-On: N/A
Bolt Hole Center to Center Height: 69.85 MM
Bolt Hole Center to Center Width: 114.3 MM
Bolt Hole Thread Size: M10 x 1.5
Material: Mild Steel
Overall Height: 95.9 MM
Overall Port Width: 87.4 MM
Overall Width: 136.7 MM
Port Height: 58.7 MM
Port Width: 87.47 MM
Product Group: Turbine Inlet Flanges
Prop 65 Yes/No: No
Thickness: 0.5 IN
Title: Vibrant Performance - 14170 - T6 Turbo Inlet Flange

FITMENT NOTES

Universal
