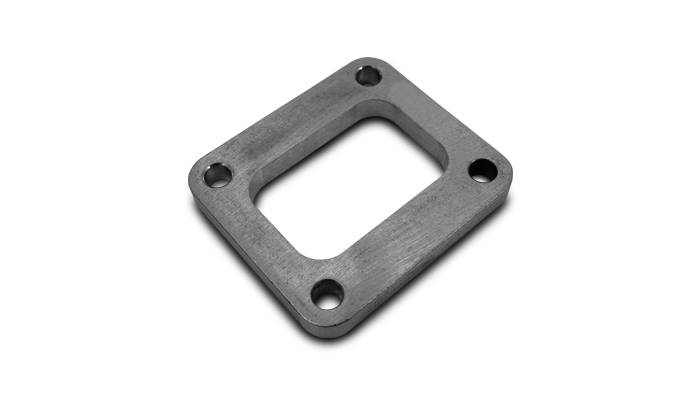

Vibrant Performance T04 Turbo Inlet Flange (Rectangular Inlet) Mild Steel 1/2in Thick

T4 Turbo Inlet Flange (1/2" thick)

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.

Precision laser cut and CNC machined to ensure a perfect fit to your turbo components

ADDITIONAL INFORMATION

Add-On: N/A
Bolt Hole Center to Center Height: 69.85 MM
Bolt Hole Center to Center Width: 82.6 MM
Bolt Hole I.D.: 11.26 MM
Material: Mild Steel
Overall Height: 95.87 MM
Overall Port Width: 76.82 MM
Overall Width: 108 MM
Port Height: 50.71 MM
Port Width: 74.68 MM
Product Group: Turbine Inlet Flanges
Prop 65 Yes/No: No
Thickness: 0.5 IN
Title: Vibrant Performance - 14410 - T4 Turbo Inlet Flange (1/2 in. thick)

FITMENT NOTES

Universal
