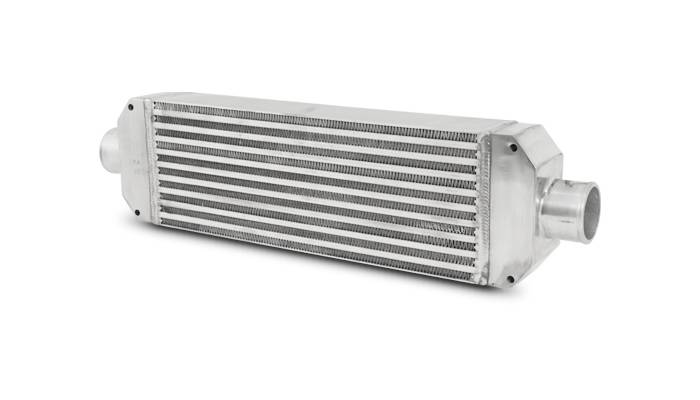

Vibrant Performance Air-to-Air IC Assy complete w/ end tanks core size 18in Wx6.5in Hx3.25in thick 2.5in in/out

Intercooler, 26"W x 6.5"H x 3.25" Thick

Vibrant Intercooler Assemblies are all designed in house, and feature the same bar and plate construction as well as Louvered fin design on ambient air path with offset fin design on charge air path that is found in our lineup of Intercooler Cores. Each assembly also features cast aluminum tig welded end tanks, with a 2.5" or 3" inlet/outlet depending on intercooler size. These preassembled intercoolers each include mounting brackets and hardware for ease of installation and are pressure tested to ensure a leak free assembly.

A new louvered fin design maximizes the available surface area of the core
Features Bar and Plate construction with 25% increased fin density
Offers vastly improved efficiency

ADDITIONAL INFORMATION

Add-On: N/A
Core Thickness: 3.25 IN
Core Width: 18 IN
Height: 6.5 IN
Inlet / Outlet Neck Length: 1.75 IN
Inlet / Outlet O.D.: 2.5 IN
Material: 6061 Aluminum
Overall Length: 26 IN
Product Group: Air to Air Intercoolers
Prop 65 Yes/No: No
Title: Vibrant Performance - 12800 - Intercooler, 26 in.W x 6.5 in.H x 3.25 in. Thick

FITMENT NOTES

Universal
