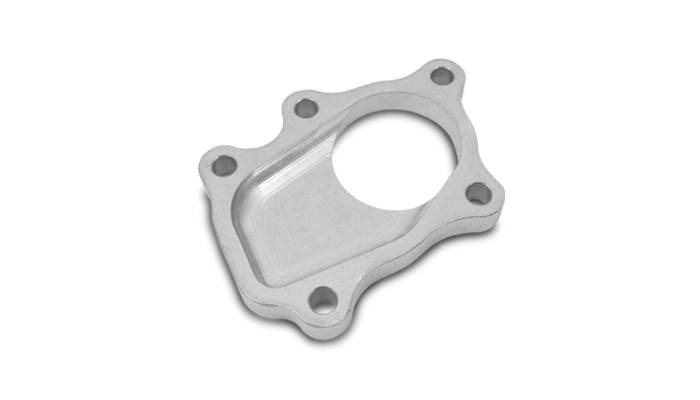

Vibrant Performance T304SS Turbo Outlet Flange for Garrett GT2560/2860

Turbo Outlet Flange for Garrett GT2554, GT2560R, GT2854R, GT2859R

Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.

Cavity back to accommodate internal wastegate

ADDITIONAL INFORMATION

Add-On: N/A
Bolt Hole I.D.: 8.9 MM
Material: 304 Stainless Steel
Port I.D.: 48
Product Group: Turbine Outlet Flanges
Prop 65 Yes/No: No
Thickness: 0.5 IN
Title: Vibrant Performance - 19872 - Turbo Outlet Flange for Garrett GT2554, GT2560R, GT2854R, GT2859R
Tube Recess Depth: 1 MM
Tube Recess I.D.: 51.3

FITMENT NOTES

Universal
