Injen 19-20 Ford Ranger L4 2.3L Turbo Wrinkle Black PF Cold Air Intake

Adventure awaits with your 2019-2020 Ford Ranger! Rugged, capable, and refined are all words used to describe the new Ford Ranger. What they don't say is how it needs a boost in power to really take on the outdoors. Well, don't worry because Injen Technology has you covered! Our engineering team here at Injen Technology took the all-new 2019-2020 Ford Ranger equipped with the 2.3L Turbocharged engine deep into our R&D lab to extract the hidden power potential inside the engine and what've come up is nothing short of amazing. Our engineers found that there was hidden power in the intake tube design and designed an intake tube with smooth transitions for reduced restriction and improved performance. Our new PF9071 short ram cold air intake opens up the intake tract with a large 3.250"aluminum intake tube that allows that turbo and engine to breathe deep and produce the power that you've been craving. Along with that impressive intake tube, our engineers also developed a custom heatshield that installs easily and helps keep your inlet air temps low and in check. , ,; Our PF9071 intake provides an intake growl that will surely excite your senses as you open up your Ford Ranger and let that turbo spool. The soul of this intake is found within 6061-T6 aluminum air intake tube that provides a smooth uninterrupted path for highly efficient airflow. Our engineers have painstakingly designed the intake to provide the highest levels of safe power, along with clean aesthetics that will impress every time you open your hood. In addition to the impressive power increase, the Injen team has ensured that a safe Air fuel (A/F) ratio has been maintained throughout the power band. , , Additionally, the PF9071 intake includes a fully serviceable Injen SuperNano-Web dry air filter, which provides increased filter surface area allowing for greater airflow and unbeatable filtration. If that's not enough, the Injen PF performance intake provides power you can hear and feel! On our dyno, the PF9071 put down an impressive 14 additional horsepower and 13 pound-feet of tire-scorching torque; This intake provides an aggressive and throaty tone that is unmatched in the aftermarket and one that you'll enjoy every time you smash the accelerator! Want to add that personalized touch to your intake? You're in luck, as Injen also offers this intake system in two amazing finishes ? PF9071WB (Wrinkle Black), and SP3089SE (Special Edition Wrinkle Blue). To top it all off, this PF CAI kit includes the unbeatable Injen Technology limited Lifetime Warranty!

Dyno Proven gains of up to 14 hp and 13 lb-ft. of torque
Provides power gains while maintaining A/F ratios with no additional tuning

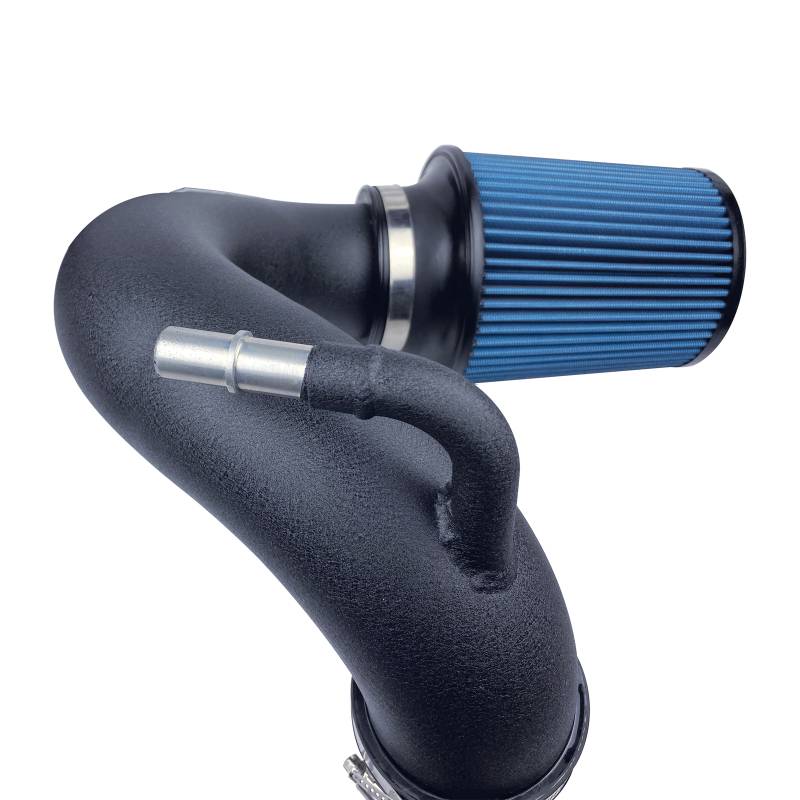

T6-6061 aluminum intake tubing

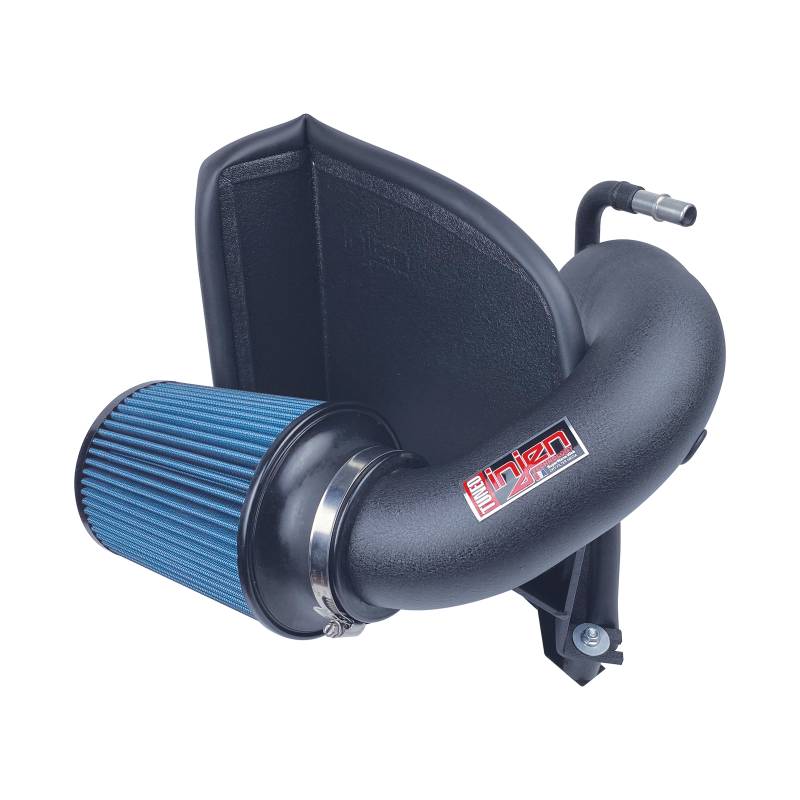

Includes custom heat shield specifically designed for this application
Fully serviceable Injen SuperNano-Web dry air filter
Replacement air filter part number X-1102-BB
Optional hydroshield part number 1037BLK or 1037RED
Available with multiple finish options (select applications)
Aggressive engine tone under full throttle
Smooth intake piping eliminates restrictions and improves airflow
Made in Pomona, California USA
Injen Technology Limited Lifetime Warranty
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

ADDITIONAL INFORMATION

Injen 19-20 Ford Ranger L4 2.3L Turbo Wrinkle Black PF Cold Air Intake

Long Description: Wrinkle Black PF Cold Air Intake System
Extended Description: PF Cold Air Intake System, Part No. PF9071WB, 2019-2020 Ford Ranger L4-2.3L Turbo.
Associated Comments:

Black Hydroshield (Optional): 1034BLK
Compatible Throttle Controller: PT0013B
Filter Color: Blue
Filter Media: Dry SuperNano-Web
Grade Type: Performance
Heat Shield Included: Yes
HP Gain: 14
Intake Color: Wrinkle Black
Mounting Hardware Included: Yes
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
Red Hydroshield (Optional): 1034RED
Replacement Filter Part Number: X-1015-BB
Title: Injen Wrinkle Black PF Cold Air Intake System
TQ Gain: 13
Tube Material: T6-6061 Mandrel-bent aluminum intake tubing
Universal or Specific Fit: Specific

FITMENT NOTES

2019-2020 Ford Ranger
