AutoMeter #4 Braided SS Line (-4AN) 6ft -4AN and 1/8in NPTF Fittings

3228
Not Available
Availability: Usually ships within 24 hours
Was: $110.87
Sale: $97.65
Save: 12%
Save: $13.22

Description

LINE, BRAIDED STAINLESS STEEL, #4 DIA., 6FT. LENGTH, -4AN AND 1/8" NPTF FITTINGS

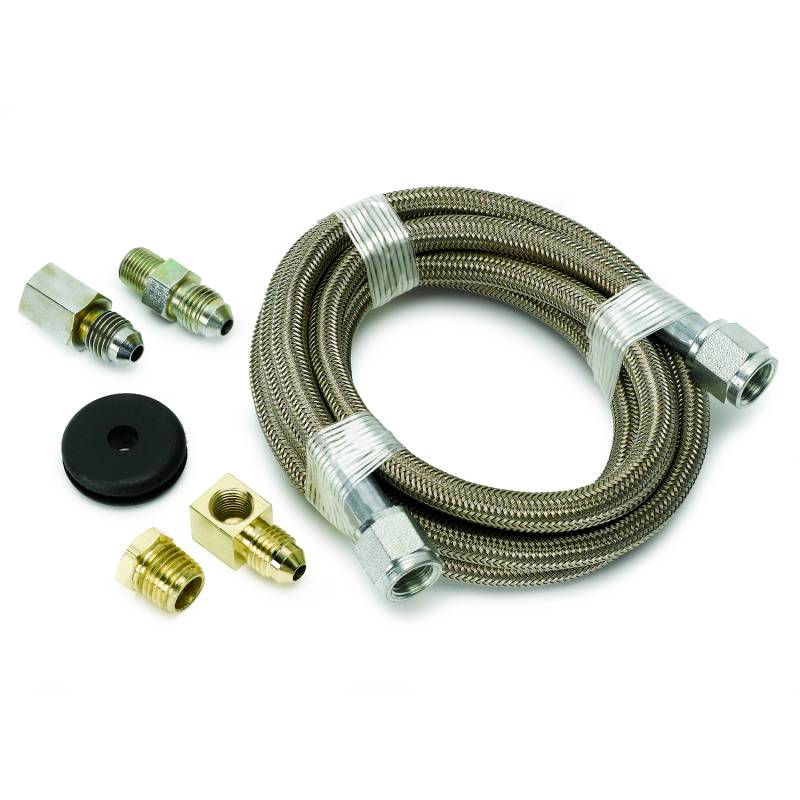

Includes 6ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

6ft hose length
PTFE lined hose, resistant to most fluids
Type 304 Stainless braid
Maximum Operating Pressure - 3000 PSI
Burst Pressure - 12,000 PSI
-65 Degrees F to 450 Degrees F Operating Temperature Range
Includes 1/8" NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings

Additional Information

AutoMeter #4 Braided SS Line (-4AN) 6ft -4AN and 1/8in NPTF Fittings

Add-On: N/A
Title: LINE, BRAIDED STAINLESS STEEL, #4 DIA., 6FT. LENGTH, -4AN AND 1/8 in. NPTF FITTINGS

Compatible Vehicles

Fitment Notes

None

Shipping Information

  • Item Requires Shipping
  • 0.7 lbs.
  • W5.7500” x H11.5000” x L1.0000”
  • Free Shipping!
