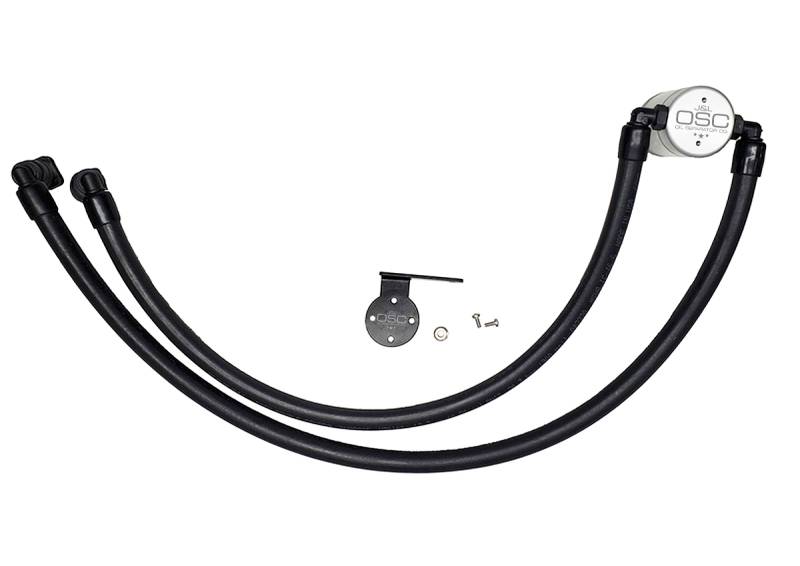

J&L 17-20 Ford F-250 6.2L/7.3L Passenger Side Oil Separator 3.0 - Clear Anodized

J&L Oil Separator 3.0 Passenger Side, Clear Anodized (2017-2022 Ford F-250/F-350 6.2L/7.3L)

During the process of venting crankcase pressure back through your intake track, large amounts of oil, in the form of vapors can gather/accumulate in your intake tube, intake manifold runners and even dilute your gas, lowering its octane level. This happens on all engines and is even worse with forced inducted vehicles (supercharged and turbocharged) as crankcase pressures are increased. To combat this, we have developed an oil separator of our own design. Milled from solid billet aluminum this is a rock-solid piece. It has a knurled tank base for easy removal to drain the spent oil and an O-ring seal to prevent any leaks.

Filtering consists of a fine mesh stainless steel screen that traps fine oil vapors and releases them once heavy enough to fall. They then pass through a 1/2" thick 1/16th" aluminum honeycomb filter where they grow every larger and then fall into the bottom. By the time the oil gets through the filter it's too heavy to be passed on into the intake. The tank holds 3 oz of fluid, while that may not sound like a lot, you shouldn't see that much oil in your PCV system. Drain it every 2000-3000 miles and you will never come close to filling it.

3oz Capacity
Solid billet construction
Quick connect PCV fittings
The multistage filter is designed to collect the finest of oil vapors and drop them into the removable bottom while allowing clean air to pass through to the intake.

ADDITIONAL INFORMATION

J&L 17-20 Ford F-250 6.2L/7.3L Passenger Side Oil Separator 3.0 - Clear Anodized

Long Description: Oil Separator 3.0 Passenger Side
Extension Compatible: Yes
Finish: Clear Anodized
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: prop65_warning.jpg
Prop 65 Yes/No: Yes
Title: J&L Oil Separator 3.0 Passenger Side

Not CARB legal: Not for sale or street use in CA & CARB states.

FITMENT NOTES

2017-2022 Ford F-250 Super Duty
2017-2022 Ford F-350 Super Duty
