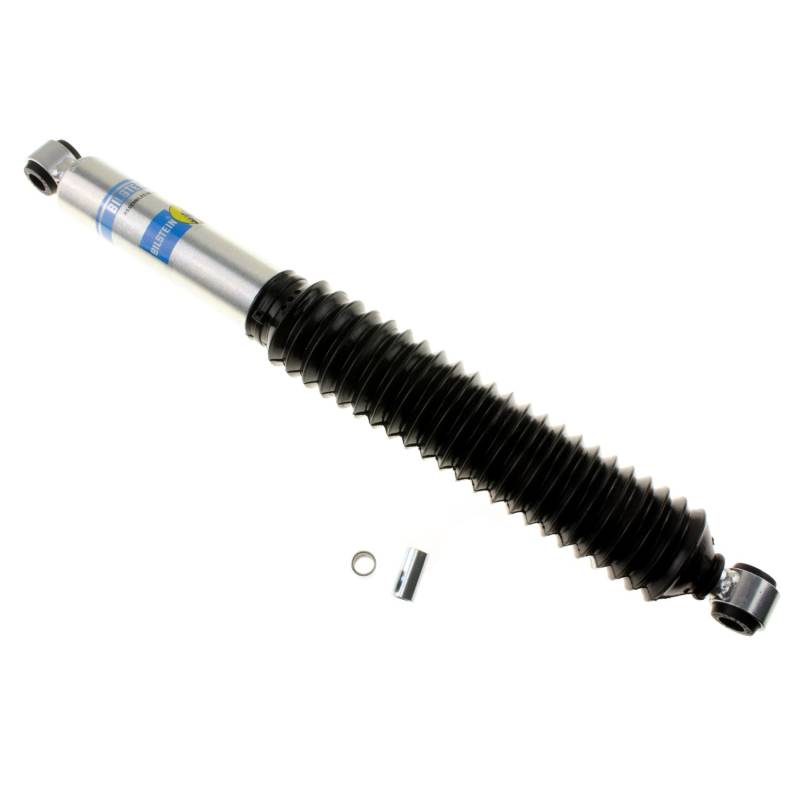

Bilstein 5125 Series KBOA Lifted Truck 216.5mm Shock Absorber

Bilstein 33-230443 B8 5125 - Suspension Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

46mm monotube design ensures consistent fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

ADDITIONAL INFORMATION

Bilstein 5125 Series KBOA Lifted Truck 216.5mm Shock Absorber

Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
Boot Included: Black Bellows
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 14.13
Collapsed Length (IN) Rounded: 14
Collapsed Length (MM): 359.0
Compression @0.52m/s: 575
Extended Length (IN): 22.54
Extended Length (IN) Rounded: 23
Extended Length (MM): 572.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 1600
Reservoir: No
Segment: Light Truck
Series: B8 5125
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in

FITMENT NOTES

No Applications
