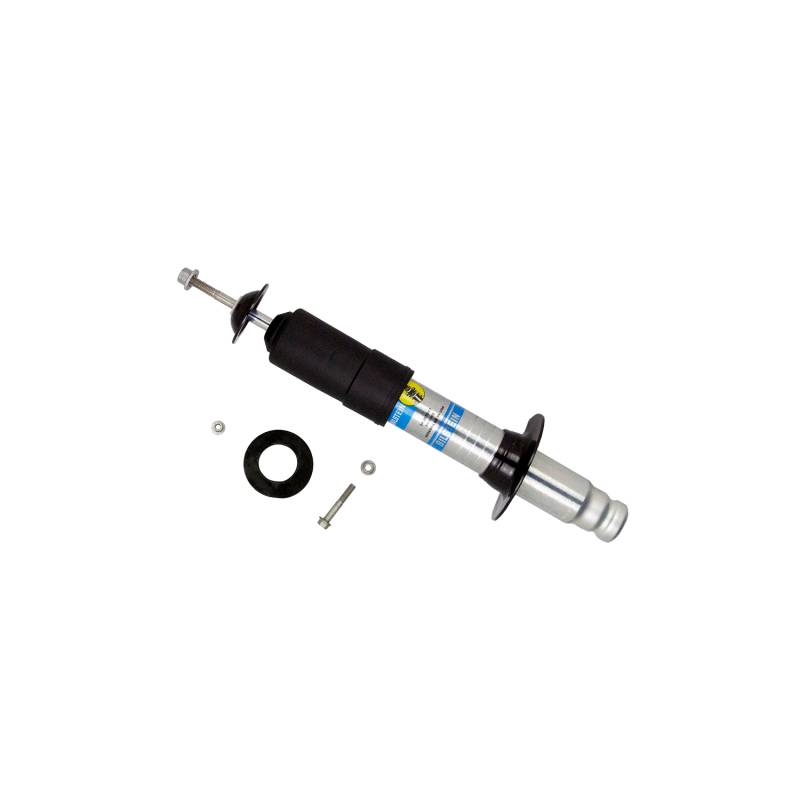

Bilstein 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

24-267014
GM Trailblazer 02-09 2/4WD Front B8 5100
Limited Supply: only 4 remaining
Availability: Usually ships within 24 hours
Was: $223.60
Sale: $160.00
Save: 28%
Save: $63.60
Qty:
Free Shipping!

Description

Bilstein 24-267014 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.๏ฟฝ Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

46mm monotube design ensures consistent fade-free performance in all conditions
Practical alternative to coil spring spacers with the benefit of Bilstein monotube technology
Adjustable spring seat offers 0-2.75in of lift depending on the application

Additional Information

Bilstein 5100 Series 02-09 Chevrolet Trailblazer Front 46mm Monotube Shock Absorber (Height Adj)

Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter (ID): 46mm
Boot Included: Black Straight
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 11.26
Collapsed Length (MM): 286.1
Extended Length (IN): 16.41
Extended Length (MM): 416.9
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Base Cup
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

Compatible Vehicles

Fitment Notes

Buick Rainier 2007-2004
Chevrolet Trailblazer 2009-2002
Trailblazer EXT 2006-2002
GMC Envoy 2009-2002
Envoy XL 2006-2002
Isuzu Ascender 2008-2003
Oldsmobile Bravada 2004-2002
Saab 9-7x 2009-2005

Details

Shipping Information

  • Item Requires Shipping
  • 5.1 lbs.
  • W4.1300” x H4.1300” x L26.8000”
  • Free Shipping!
