Bilstein 5100 Series 00-05 Ford Excursion/ 99-04 F-250 Super Duty Front 46mm Monotube Shock Absorber

33-104645
TKABIA LiftedTruck253 5mm;0;B8
Availability: Usually ships within 24 hours
Was: $156.60
Sale: $112.00
Save: 28%
Save: $44.60
Qty:
Free Shipping!

Description

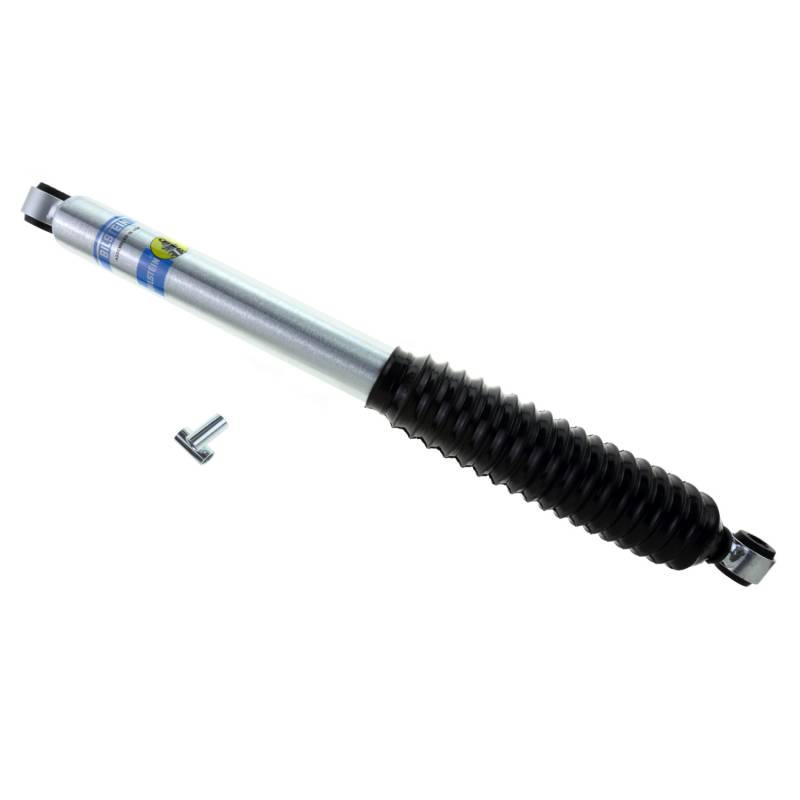

Bilstein 33-104645 B8 5125 - Suspension Shock Absorber

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

46mm monotube design ensures consistent fade-free performance in all conditions
Patented digressive valving instantly reacts to changing surface conditions
Vehicle specific tuning

Additional Information

Bilstein 5100 Series 00-05 Ford Excursion/ 99-04 F-250 Super Duty Front 46mm Monotube Shock Absorber

Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
Boot Included: Black Bellows
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 15.91
Collapsed Length (IN) Rounded: 16
Collapsed Length (MM): 404.0
Compression @0.52m/s: 575
Extended Length (IN): 25.93
Extended Length (IN) Rounded: 26
Extended Length (MM): 658.5
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 5/8in
Mount Type: Eye-to-Eye
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 1600
Reservoir: No
Segment: Light Truck
Series: B8 5125
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Eye 5/8in

Compatible Vehicles

Fitment Notes

Ford Excursion 2005-2000
F-250 Super Duty 2004-1999
F-350 Super Duty 2004-1999

Details

Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W2.9500” x H2.9500” x L26.8000”
