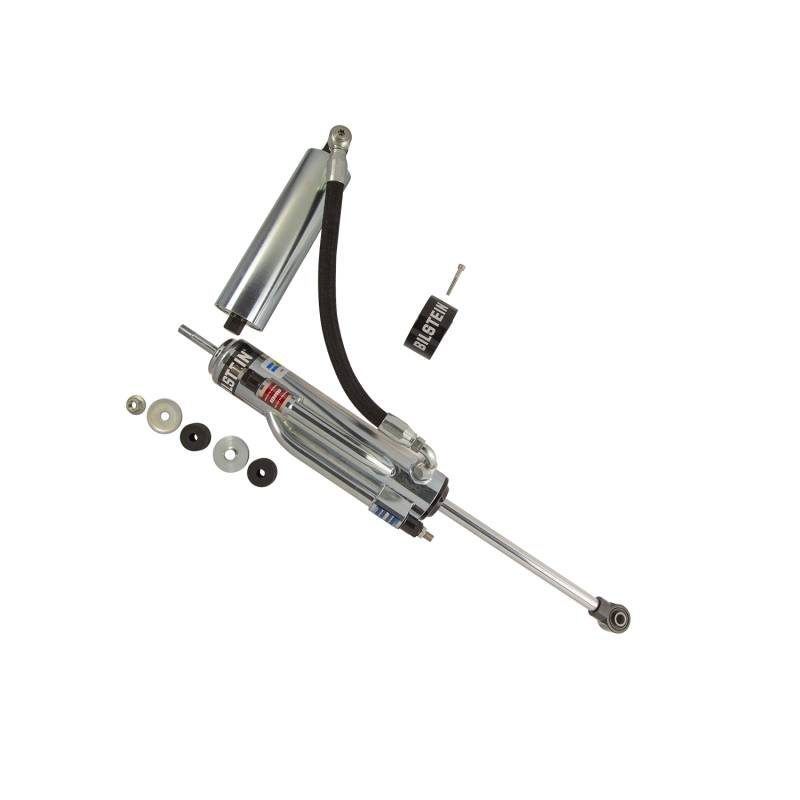

Bilstein 25-269819 B8 8100 (Bypass) - Suspension Shock Absorber

Bilstein 25-269819 B8 8100 (Bypass) - Suspension Shock Absorber

Bilstein B8 8100 (Bypass) is a direct fit position sensitive damper for light trucks and SUV�s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature �Incremental Flow� bypass adjusters allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose remote reservoir exit port delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience offering unparalleled ride comfort and incredible bottom out control.

Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability

ADDITIONAL INFORMATION

Bilstein 25-269819 B8 8100 (Bypass) - Suspension Shock Absorber

Adjustable Damping: Double Adjustable � Compression and Rebound
Body Design: 60mm ID Bypass Body (Non-Coilover)
Boot Included: No
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 14.25
Collapsed Length (MM): 362.0
Extended Length (IN): 23.94
Extended Length (MM): 608.0
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Eye 12mm
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Reservoir: Yes
Segment: Light Truck
Series: B8 8100 (Bypass)
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem

FITMENT NOTES

No Applications
