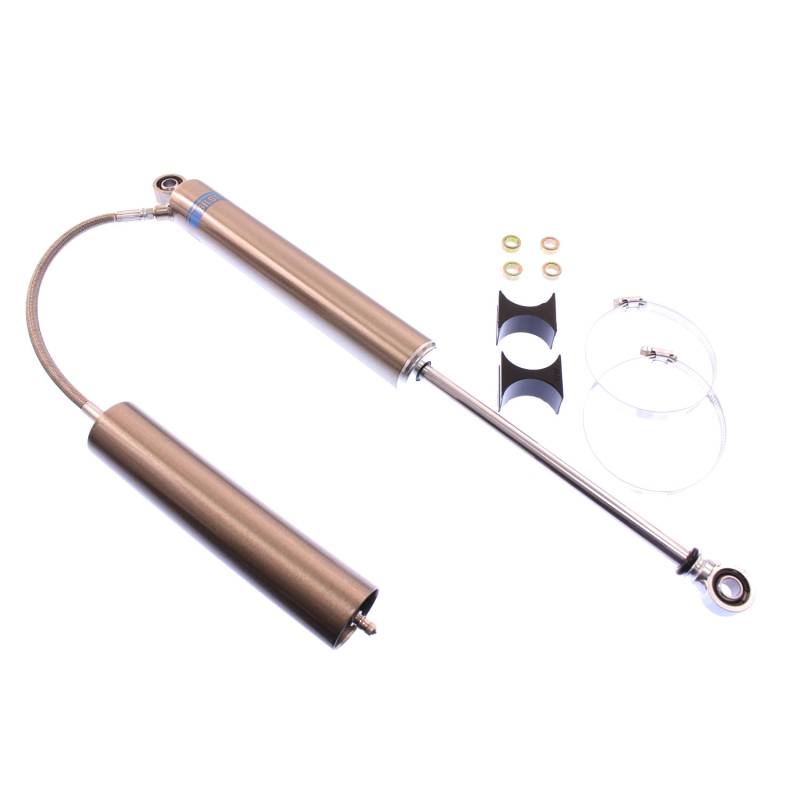

Bilstein Motorsport RSVR. 10in. BODY 12in.ROD 170/60 46mm Monotube Shock Absorber
Description
Bilstein AK7112SB M 7100 - Suspension Shock Absorber

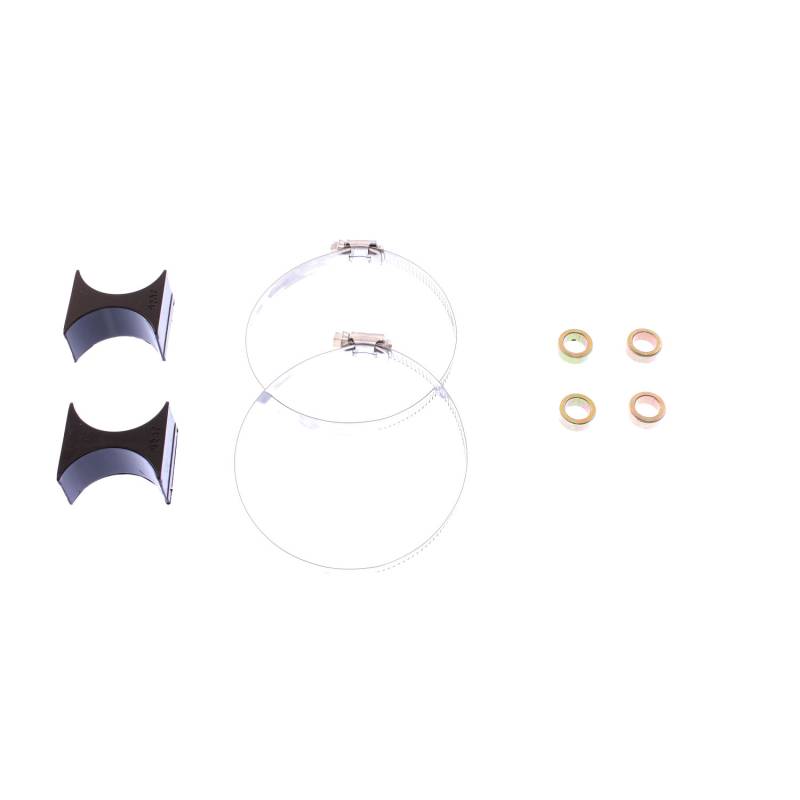

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with � inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.
46mm monotube design ensures consistent fade-free performance in all conditions
Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
High-flow piston reduces harshness
Additional Information
Bilstein Motorsport RSVR. 10in. BODY 12in.ROD 170/60 46mm Monotube Shock Absorber
Body Design: Smooth Body (Non-Coilover)
Body Diameter (ID): 46mm
California Proposition 65: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
Collapsed Length (IN): 16.10
Collapsed Length (IN) Rounded: 16
Collapsed Length (MM): 408.9
Compression @0.52m/s: 600
Extended Length (IN): 27.68
Extended Length (IN) Rounded: 28
Extended Length (MM): 703.1
Finish: Nickel Plated with Clear Powder Coat
Internal Design: Monotube
Lower Mount Type: 1/2in Heim
Mount Type: Eye-to-Eye
Optional Reservoir Clamp: N/A
PartType: Shocks / Struts
Prop 65 (Y/N): Y
Rebound @0.52m/s: 1700
Reservoir: Yes
Segment: Motorsports
Series: M 7100
Spring Seat Included: No
Title: Bilstein Shock Absorbers
Upper Mount Type: 1/2in Heim
Compatible Vehicles
Fitment Notes
No Applications
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W7.0000” x H2.0000” x L37.0000”
- Free Shipping!
